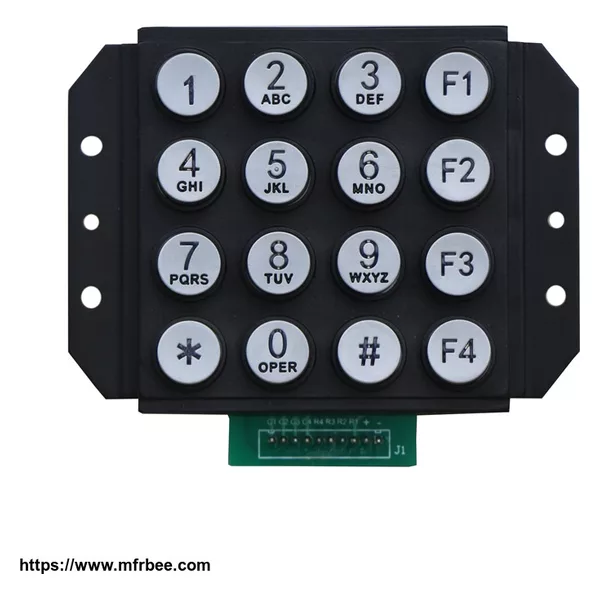

IP65 Zinc Alloy 4x4 matrix keypad

FOB Price
USD $10.00 / Piece
Place Of Origin
China (Mainland)
Minimum Order
1
Packaging
80pcs /ctn
Delivery
15 Days
PRODUCT DESCRIPTION
FEATURES

1.Keys are good touch feeling and accurate data input without any noise.
2.Plastic frame and zinc alloy key buttons,Backlit keys,Vandal resistant
3.Fonts and pattern of key surface can be customized.
4.Natural silicone rubber conductor
5.Weatherproof,corrosion resistance,Ageing reisitance.
6.Chemical gold plated and reliable contact.

USER OPTIONS

1.Surface treatment of frame and keys: satin-finished or mirror polish.
2.Connectors:USB, PS / 2, XH socket,PIN,RS232,DB9.

3.Labels on the buttons can be customized by etching.

APPLICATION
self-service library self-service kiosk CNC machine
household applications oiling machine charge spot
industrial telephone ATM access control
ticket machine vending machine medical facility
security system fingerprint attendance machine
PARAMETERS
60-106Kpa
Model B664
Material Zinc Alloy
Key size 82.5*109mm
Life 2,000,000 cycles per key
Contact Resistance 200 Ohms Maxium
Contact Rating 100 mA
PCB Double-sided PCB
Conductive Rubber Silicone conductive carbon particles
Key button selection 0-9,*,#,customized keys
LED 0603 LED
Backlit color Blue,White,customizable
Connection Interface XH plug,Pin Header,USB,PS2,RS232,RS485
Certificate CE
Protection Degree IP65
Vandal Proof Degree IK08
Operating Temperature -25℃~65℃
Storage Terperature -45℃~85℃
Relative Humidity 30%-90%RH
Atmospheric pressure
  • Country: China (Mainland)
  • Business Type: Manufacturer
  • Market:Middle East,Americas,Africa
  • Founded Year:2005
  • Address:LANJIANG
  • Contact:Alice Wei
more images of IP65 Zinc Alloy 4x4 matrix keypad
more images of IP65 Zinc Alloy 4x4 matrix keypad
