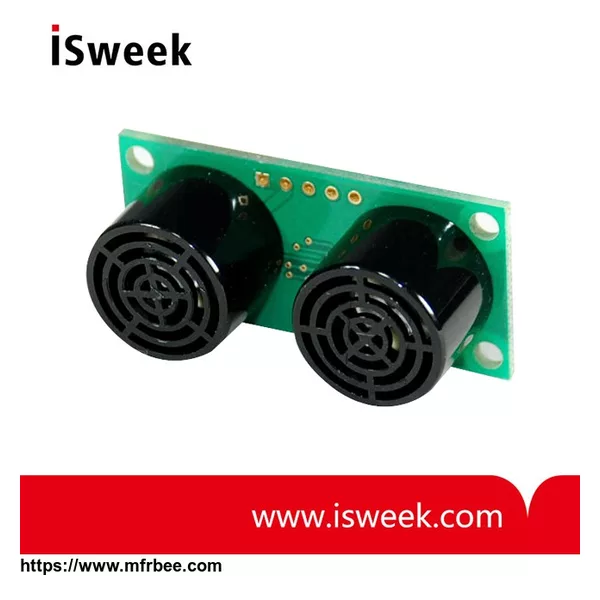

HG-B40A/HG-B40C Combi ASIC Ultrasonic Sensor & Module
Product Quick Detail
- Brand Name
- Hagisonic
- Place Of Origin
- South Korea
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
HG-B40A/HG-B40C Combi ASIC Ultrasonic Sensor & Module Features
• Low-power, high-sensitivity module.
• Choose from a wide variety of input/output Mode.
• Auto sensitivity control function as a distance proportional to the distance error captain.
• The same standards as existing foreign products and mutually replaceable.
HG-B40A/HG-B40C Combi ASIC Ultrasonic Sensor & Module Specification
| Frequency (KHz) | 40±2 | |
| Transmit Mode | Free Run | No Connection |
| | External Trigger | TTL Pulse (100~700 ㎲) |
| | | Repetition Rate (10~30 time / sec) |
| Receiver Output Signal | Analog | ±2 V max at 2.5 V Base Line |
| | Real Time Pulse | 4~5 V TTL, All the objects detected |
| | Distance Pulse | 4~5 V TTL Only the nearest Object |
| Input DC & Detecting Range (at in front angle flat plate) | Low Voltage Type (5 V dc) | 0~3 m (Conventional, HG-B40C) |
| | High Voltage Type (12 V dc) | 0~6 m (Conventional, HG-B40C) 0~3 m (Anistropic, HG-B40A) |
