Anping Tenglu Metal Wire Mesh Co.,LTD

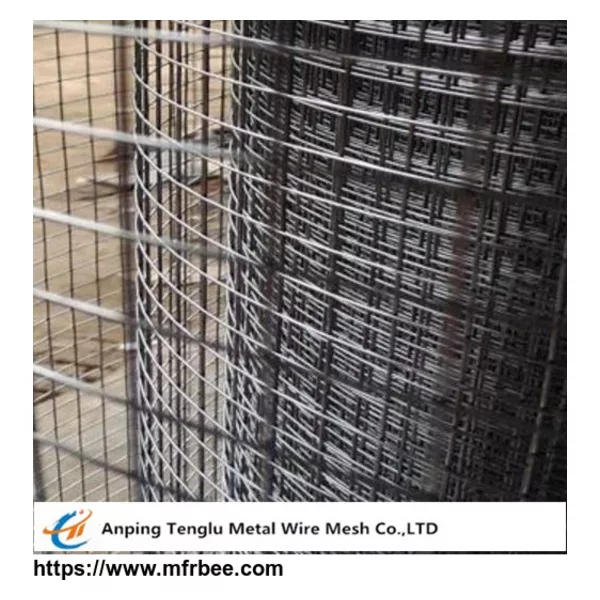

Square Welded Wire Mesh
•Product Description:
Welded wire mesh typically has larger openings than woven wire mesh. With the wire strands welded at each intersection, welded wire mesh is more capable of maintaining its shape when stressed.
Square welded wire mesh is the commonly used welded wire mesh. Other hole types include rectangle type, special type and so on. In general, square welded wire mesh is made of stainless steel wire,galvanized steel wire, zinc-coated steel wire, low carbon steel wire, PVC coated welded wire mesh and vinyl coated steel wire.
•Specifications:
Low carbon electric-galvanized square welded wire mesh
12.7 mmx12.7 mmx0.9 mmx1000 mmx30 m.
25.4 mmx12.7 mmx0.9 mmx1000 mmx30 m.
25.4 mmx25.4 mmx1.4 mmx1000 mmx30 m.
50.8 mmx25.4 mmx1.6 mmx1000 mmx30 m.
50.8 mmx50.8 mmx1.8 mmx1000 mmx30 m.
End application: for plastering.
Low carbon black square welded wire mesh
12.7 mmx12.7 mmx0.9 mmx1000 mmx30 m.
25.4 mmx12.7 mmx0.9 mmx1000 mmx30 m.
25.4 mmx25.4 mmx1.4 mmx1000 mmx30 m.
50.8 mmx25.4 mmx1.6 mmx1000 mmx30 m.
50.8 mmx50.8 mmx1.8 mmx1000 mmx30 m.
End application: for plastering.
Low carbon hot-dipped galvanized square welded wire mesh
Size of opening: 12.50 mmx12.50 mm;
Wire diameter: 0.50 mm;
Width of roll: 1275 mm.
Weight of 1 square m.: 0.240 kg.
End application: for producing armored glass.
•Packaging :Wooden box
•Our Service:
Materials certification
Customized size
