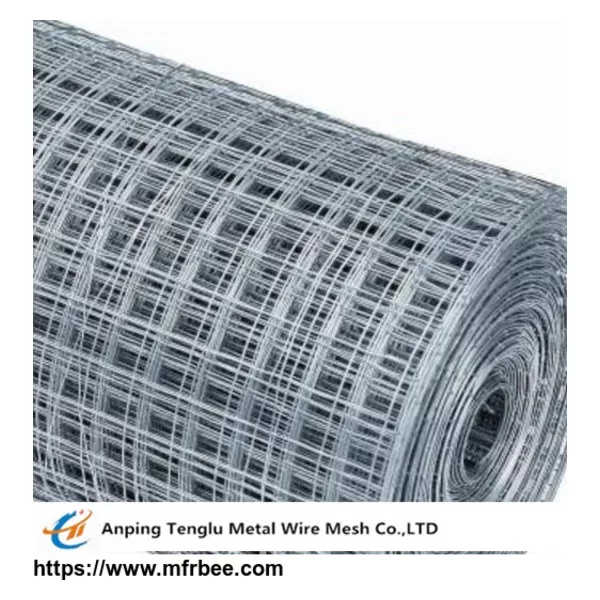

Galvanized Wire Mesh
•Product Description:
Galvanized is not a metal or alloy; it is a process in which a protective zinc coating is applied to steel to prevent rusting. In the wire mesh industry, however, it is often treated as a separate category because of its wide spread use in all types of applications.
Galvanized Wire Mesh is one of the most inexpensive options for those who are interested in security or railing applications. The wire mesh is coated repeatedly with zinc to seal the mesh and protect this from rust and corrosion. Also known as galvanized iron wire, this mesh is durable and can withstand harsh weather conditions. Applications include use as window screens, safety guards, sieve grains, liquid and gas filtration.
Galvanized before woven wire mesh or galvanized before welded wire mesh indicates the individual wires, themselves, used to manufacture the mesh have been galvanized before the mesh is woven or welded. Depending on the mesh (or opening size) and diameter wire, this is usually the less expensive option, especially if custom manufacturing is required.
Galvanized after woven and galvanized after welded wire mesh is exactly as it sounds. The material is manufactured, normally in carbon or plain steel, and is often placed in a galvanizing tank, thereby producing a galvanized after woven or welded specification. Generally speaking, this option is more expensive, depending on availability and other variables, but does offer a higher level of corrosion resistance. This added level of corrosion resistance is most noticeable at the joint or intersection of galvanized after welded wire mesh specification.
One of the main benefits of a galvanized wire mesh, and particularly of a galvanized welded specification, is that it tends to offer a wide variety of opening sizes and diameter wires. For instance, mesh opening sizes, such as 4" x 4", 2" x 2", 1" x 1" and 1/2" x 1/2", tend to be readily available from stock in a handful of popularly requested diameter wires.
•Types of Galvanized Wire Mesh:
Electro Galvanized (Before Weaving);
Electro Galvanized (After Weaving);
Hot-Dipped Galvanized (Before Weaving);
Hot-Dipped Galvanized (After Weaving).
•Materials:Electro and Hot-dipped Galvanized wire
•Application:
Fencing, caging & enclosures;
Farm, garden & agricultural use;
Window & safety guards;
Archeological use;
Building & construction projects;
Infill panels;
High security applications;
Landscaping & gabions.
•Packaging :Wooden box
•Our Service:
Materials certification
Customized size
•Specifications:
Mesh | Wire Dia. (mm) | Opening (mm) |
3 | 1.6 | 6.87 |
4 | 1.2 | 5.15 |
5 | 0.95 | 4.13 |
6 | 0.8 | 3.43 |
8 | 0.7 | 2.43 |
10 | 0.6 | 1.94 |
12 | 0.55 | 1.56 |
14 | 0.14 | 1.4 |
16 | 0.38 | 1.24 |
18 | 0.3 | 1.11 |
20 | 0.27 | 1 |
22 | 0.25 | 0.9 |
24 | 0.23 | 0.83 |
26 | 0.2 | 0.78 |
28 | 0.18 | 0.73 |
30 | 0.15 | 0.7 |
35 | 0.14 | 0.59 |
40 | 0.14 | 0.5 |
50 | 0.12 | 0.39 |
60 | 0.12 | 0.3 |
