ROHS Compliant Wide input non-isolated、regulated single output Efficiency up to 93%
Short circuit protection, Thermal shutdown Temperature range: -40ºC ~ +85ºC Low ripple noise
SIP package, UL94-V0 Compliant No heat sink required Industry standard pinout
Part Number Input Voltage (VDC) Input Voltage (VDC)
Nominal Nominal Voltage(VDC) Current(mA) (Min)
(mA) Current(mA) (Max)
(mA)
TP78LU3.3-0.5 48
9.0~72.0
3.3 10 500
TP78LU5.0-0.5 48 9.0~72.0
5.0 10 500
TP78LU6.5-0.5 48 9.0~72.0
6.5 10 500
TP78LU9.0-0.5 48 14.0~72.0
9.0 10 500
TP78LU12-0.5 48 17.0~72.0
12 10 500
TP78LU15-0.5 48 20.0~72.0
15 10 500
TP78LU24-0.5 48 36.0~72.0
24 6 300

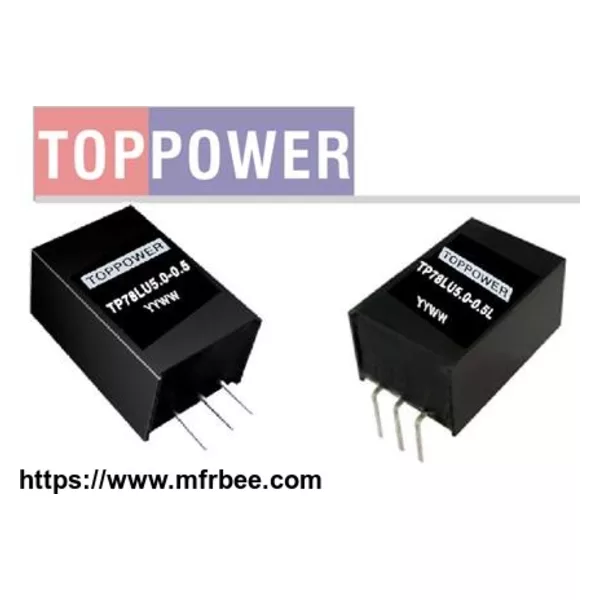

The above part number with “L” suffix are 90°bent pins power converters, for example TP78LU5.0-0.5L
TP78LUXX-0.5 series has high efficiency, short circuit protection, Thermal shutdown, no heat sink required, Industry standard pinout.ideal for redialing 78xx linear regulates and are pin compatible. ROHS Compliant Wide input non-isolated、regulated single output Short circuit ...
