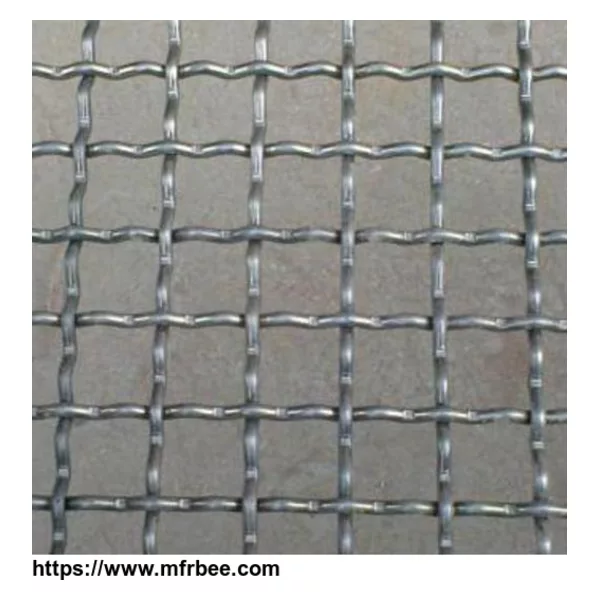

Intermediate Crimped Wire Mesh

Place Of Origin
China (Mainland)
Minimum Order
10
Packaging
N/A
Delivery
30 Days

Anping Tenglu Metal Wire Mesh Co.,LTD

Intermediate Crimped Wire Mesh

•Product Description

Intermediate crimped wire mesh/screen is also known as intercrimp wire mesh or multiple crimp wire mesh. The wire mesh is manufactured by precision weaving machines, both of the warp wire and weft wire are pre-crimped before the wire mesh is woven. Intercrimped wire mesh are the most widely used in the construction and automobile industries.

Intercrimped weave is a type of pre-crimped weave that both of warp wire and weft wires intersection occur at the points of every odd number (three, five, seven etc.) crimps or corrugations, and the larger opening size with the more number of crimps. The intercrimped weave allows for square and rectangular openings in a variety of sizes, and usually provide larger openings in relation to the lighter wire size.

•Materials:

Carbon/plain steel: low carbon steel, mild carbon steel, high carbon steel

Stainless steel: 201,202, 304, 316, 321, 410, 430

Copper: brass, pure copper, phosphor bronze

Aluminum: 1050, 1060, 1100, 5052, 5056

Nickel: pure nickel, nickel alloy, monel

Or else.

•Feature

Large opening up to 100 mm

Intercrimped assure the proper locking of the warp and weft wires

Superior rigidity and greater stability

Strong wear resistance and firm structure

•Application:

In the architectural & decorative industries, for the screen of cupboard, fireplace, fence and ceiling.

In the agricultural & food industries, for barbecue grills and pig raising screens.

In the mining & aggregate industries, for vibrating machine.

In the automobile industries, for car grilles.

In the petrochemical & chemical industries, for test sieve.

•Packaging :Wooden box

•Our Service:

Materials certification

Customized size

•Specification:

Wire diameter (mm) Aperture (mm) Specification (m) Weight kg/piece
0.6 0.8 X 0.8 1.5 X 2.0 10
0.7 1.0 X 1.0 1.5 X 2.0 10
1.0 1.5 X 1.5 1.5 X 2.0 15
1.2 2.0 X 2.0 1.5 X 2.0 17
1.5 3.0 X 3.0 1.5 X 2.0 19
2.0 4.0 X 4.0 1.5 X 2.0 25
3.0 5.0 X 5.0 1.5 X 2.0 42
3.0 6.0 X 6.0 1.5 X 2.0 38
4.0 8.0 X 8.0 1.5 X 2.0 50
4.0 10.0 X10.0 1.5 X 2.0 43
5.0 12 X 12 1.5 X 2.0 56
5.0 15 X 15 1.5 X 2.0 47
6.0 20 X 20 1.5 X 2.0 52
7.0 25 X 25 1.5 X 2.0 58
8.0 40 X 40 1.5 X 2.0 50
10.0 50 X 50 1.5 X 2.0 63

  • Country: China (Mainland)
  • Business Type: Manufacturer
  • Market:Africa,Americas,Asia,Europe,Middle East
  • Founded Year:2014
  • Address:
  • Contact:Emily liu
