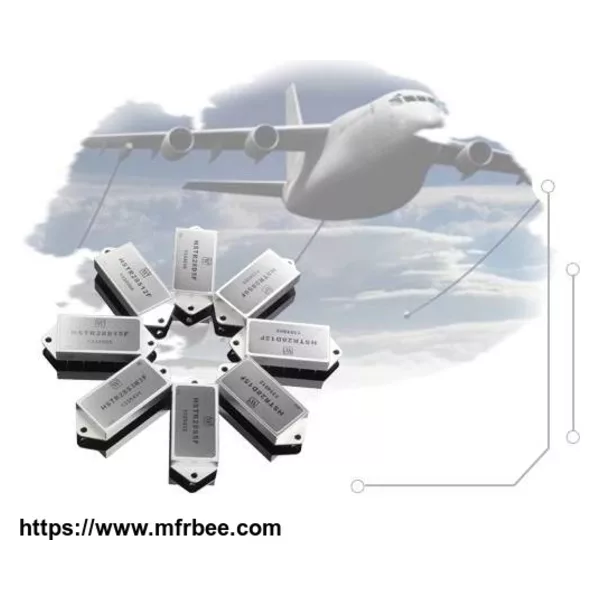

HSTR28S Series Transient Suppression DC/ DC Converters
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
1 Features of HSTR28S Series Transient Suppression DC/ DC Converters
| High reliability | ||
| Wide input voltage range：15V～50V，Nominal DC input voltage: 28V | ||
| Surge protection voltage：80V，1s | ||
| Output Power PO：40W | ||
| Operating temperature range Tc：-55℃～+125℃ | Dimensions: 54.40×29.00×10.66mm (without flange) | |
| Low Startup current | Dimensions:74.00×29.00×10.66mm (with flange) | |
| No output overshoot |
Weight：47g(without flange) 55g (with flange) |
|
| Inhibit function | Table 1 Device models | |
| Input under-voltage locked function and output short circuit protection |
HSTR28S3R3 HSTR28S3R3F |
HSTR28S8 HSTR28S8F |
| Maximum power density：41W/in3 |
HSTR28S5 HSTR28S5F |
HSTR28S12 HSTR28S12F |
| Hermetically sealed metal case |
HSTR28S5R2 HSTR28S5R2F |
HSTR28S15 HSTR28S15F |
2 Scope of application of HSTR28S Series Transient Suppression DC/ DC Converters
High-reliability electronic system for aviation and aerospace, etc
3 Description of HSTR28S Series Transient Suppression DC/ DC Converters
This series device is highly reliable and is featured with surge protection (80v, 1s) for DC/DC converter. Single ended, pulse width modulated and transformer magnetic feedback topology design is used in this device. The operating principle is that the sampling signal of output voltage, coupled by the opto-coupler, works together with the sampling signal of input loop current to regulate the pulse width of the controller. The double loop control creates constant voltage output and short circuit protection.
Devices are produced by using thick film hybrid integration process, and metal package sealing. The design and manufacturing process of HTR 28 Series ofbest dc dc converteris in compliance with General Standards of Hybrid Integrated Circuits and detailed specification of manufacturing. Input terminal connected to the accessory power supply filter can improve the electro-magnetic compatibility of devices.
