Ingress Protection Test

FOB Price
USD $500.00 / Piece
Place Of Origin
China (Mainland)
Minimum Order
1
Packaging
N/A
Delivery
15 Days

Ingress Protection Test

The Ingress Protection Test is aimed at the protection level of the electrical equipment shell for the foreign object invasion.Then, I'll introduce the test here in detail.

The IP Code, International Protection Marking, IEC standard 60529, sometimes interpreted as Ingress Protection Marking, classifies and rates the degree of protection provided against intrusion (body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The equivalent European standard is EN 60529.

The standard aims to provide users more detailed information than vague marketing terms such as waterproof. For example, a cellular phone rated at IP58 is "dust resistant" and can be "immersed in 1.5 meters of freshwater for up to 30 minutes". Similarly, an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. IP22 or IP2X are typical minimum requirements for the design of electrical accessories for indoor use.

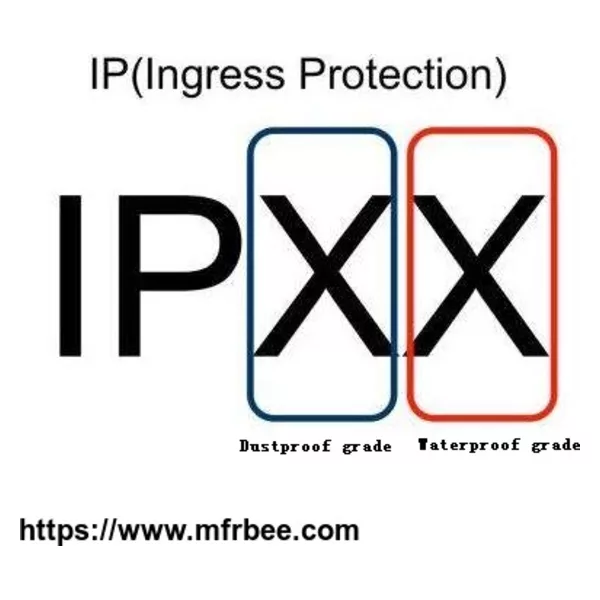

The digits indicate conformity with the conditions summarized in the tables below. The digit 0 is used where no protection is provided. The digit is replaced with the letter X when insufficient data has been gathered to assign a protection level.

How to apply for Ingress Protection test ?

The following is the simple process for Ingress Protection test in our laboratory:

1、Provide our lab your product images and product manuals.

2、Confirm the test standard by both side.

3、Quotation.

4、Fill in the test application form(Our company will provide the application form).

5、Send test samples to our company.

6、Sign the contract and pay.

7、Start testing

From:http://www.cecertificate.org/Test-Service/70.html

  • Country: China (Mainland)
  • Business Type: Business service
  • Market:European Union
  • Founded Year:2006
  • Address:A112~114, Qinye Business Center , Xin’an Sixth Road, 82th District, Bao’an, Shenzhen, China.
  • Contact:Alice Zhang
