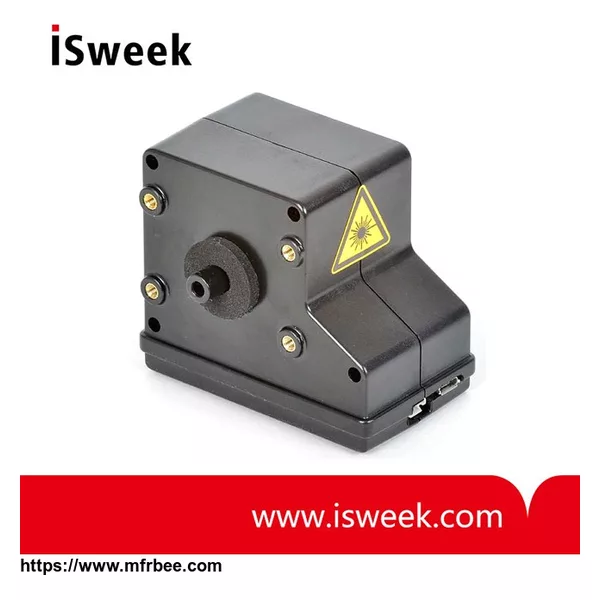

OPC-N3 PM2.5 Particle Sensor

Minimum Order
1
Brand Name
Alphasense
Place Of Origin
United Kingdom
Packaging
N/A
Delivery
15 Days
OPC-N3 PM2.5 Particle Sensor

* PM1 , PM2.5 and PM10
* Reduced power standby mode
* Capability to measure up to 2,000 µ g/m 3
* Onboard temperature and humidity sensor
* SPI interface not included, order code 000-0SPI-00
OPC-N3MEASUREMENT
Particle range
Spherical equivalent size (based on RI of 1.5, S of 1.65)
0.38 to 40
Size categorisation
Number of software bins
24
Sampling interval
Histogram period (seconds)
1 to 30
Total flow rate (typical)
L/min
1.2
Sample flow rate (typical)
mL/min
220
Max particle count rate
Particles/second
10,000
​Max coincidence probability
% concentration at 10 6 particles/L
0.84

% concentration at 500 particles/L
0.24



OPC-N3 PM2.5 Particle Sensor POWER
Measurement mode
mA (typical)
175
Standyby mode
mA (typical)
< 50
Voltage range
VDC
4.8 to 5.2
Switch-on transient
mW for 1ms
< 5000



OPC-N3 PM2.5 Particle Sensor DATA
​Digital interface/connections
SPI (real-time data and communications)

Micro USB (firmware updates and standalone mode)
Data storage
micro-SD (.CSV format) (GB)
16



OPC-N3 PM2.5 Particle Sensor KEY SPECIFICATIONS
Digital interface
SPI (Mode 1), USB

Laser classification
as enclosed housing
Class 1
Temperature range
°C
-10 to 50
Humidity range
% rh (continuous)
0 to 95 (non-condensing)
Weight
g
< 105
