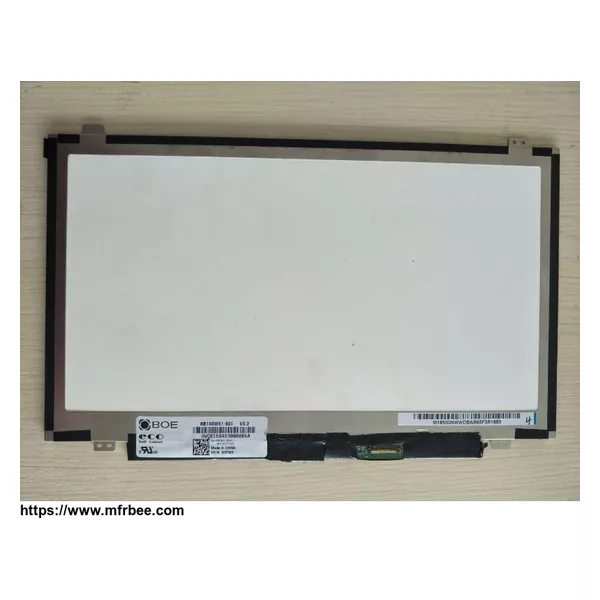

HB140WX1-601 BOE 14'' LCD 1366*768

Panel Brand: BOE

Panel Model: HB140WX1-601

Panel Size: 14.0 inch

Panel Type: a-Si TFT-LCD, LCM

Resolution: 1366(RGB)×768 , WXGA

Pixel Format: RGB Vertical Stripe

Display Area: 309.399(W)×173.952(H) mm

Outline Size: 320.9(W)×187.6(H)×3(D) mm

Surface: Antiglare, Hard coating (3H)

Brightness: 200 cd/m² (Typ.)

Contrast Ratio: 600:1 (Typ.) (TM)

Viewing Angle: 45/45/20/45 (Typ.)(CR≥10) Left / Right / Up / Down

Display Mode: TN, Normally White, Transmissive

Best View on: 6 o'clock

Response Time: 12 (Typ.)(Tr+Td)

Display Colors: 262K 48% (CIE1931)

Lamp Type: 9S4P WLED , 15K hours , With LED Driver

Frequency: 60Hz

Touch Screen: Without

Shape Style: Slim (PCBA Flat, Depth ≤3.2mm)

Application: Laptop

Signal Interface: eDP (1 Lane) , 30 pins , Connector

Input Voltage: 3.3V (Typ.)

Environment: Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
