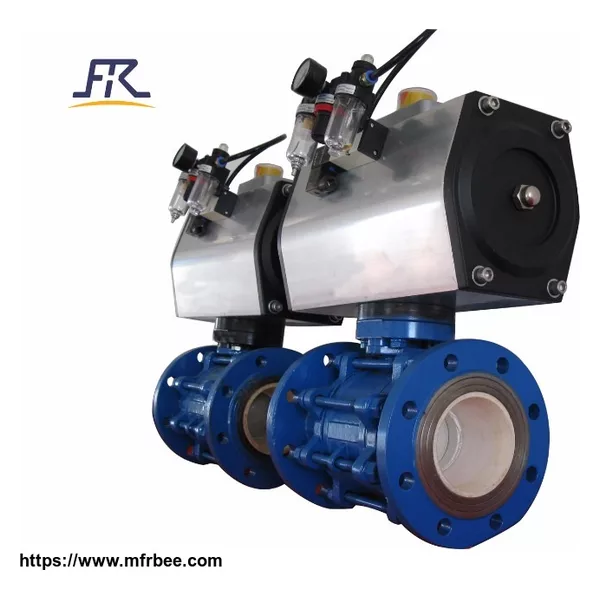

Ceramic Ball Valves

FREE- Valve’s Ceramic Ball Valves are designed with engineering ceramicsthe engineering ceramics internal parts provide excellent wear resistance, the ceramic ball valves are widely used as an open&close function as well as athrottlingcontrol tasks in corrosive medium with abrasive solids content.

Features:

1.The hardness of the ceramic material can be higher than HRC80.

2.Engineering internal parts ofceramicballvalveprovide superior protection from corrosiveandabrasive medium.

3.Customizedactuationtypesare installed on the ceramic ball valve,themanual lever or gear box, as well as with pneumatic, electric and hydraulic actuators

4.Customized V type ceramic control valve is also available for us.

5.The valve has a floating ball design,the ball is floating,theball has a defined clearance and is pressed against the downstream seatunderthe differential pressure to achieve sealing.

Technical Specification

The standards of flange ends	ASME B16.5,GB/T9113
Nominal Pressure	1.0MPa,Class150
SizeRange	DN50~DN200, NPS2~NPS8
Connection type	Flange
Working Temperature	≤200℃
Operating Type	Manual,PneumaticandElectric
Sealing surface material	Engineering ceramic
Pressure test	GB/T13927,API598
Face to Face	GB/T12221,API609

Application

FREE- Valve’sCeramic Ball Valvesaresuitable forSilicon Powder,Alumina Powder,Dry Coal Powder,Limestone Slurry,Gypsum Slurry,Plaster,Fly Ash,Mining Ore,Coal Powder Injection,Metallurgical dust,Thermal Power plant FGD,LiCoO₂powder equipment
