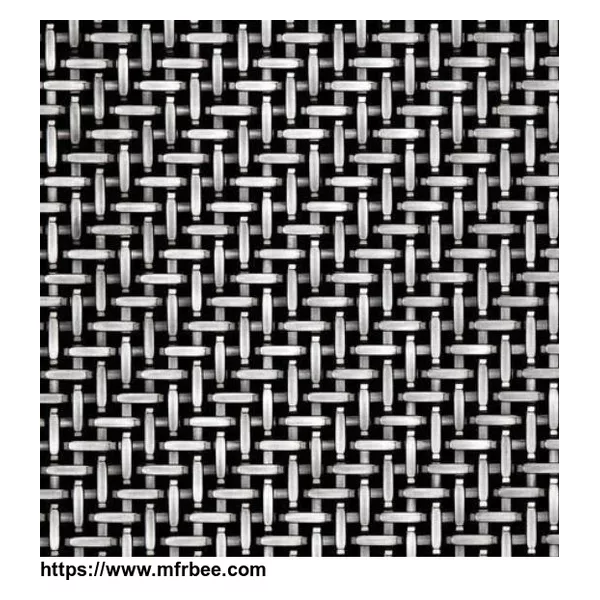

Stainless Steel Twill Weave Wire Mesh Cloth

In the Twilled Woven Wire Mesh, the wires of the weft and the warp intercross two above and two below, inverting the intersections of the warp wire at an established distance, obtaining a rigid, stable and robust type of wire mesh fabric.

Crossed twilled wire mesh are basic components in the production of filters, colanders for aliments, chemicals products, shielding, mosquito nets, etc.

Wire Materials:

Stainless Steel Wire: AISI 304, 304L, 316, 316L, 310, 314, 410, 430.

Twilled woven wire mesh in carbon steel, galvanized steel, aluminum alloy, brass, phosphor bronze and other metals is also supplied.

SS 304 Twill Weave Wire Mesh

Weave TYPE	MESH COUNT	WIRE DIA. IN INCHES	WIDTH OF OPENING	% OF OPEN AREA	WEIGH PER 100 SQ’ BASED ON SS 304
INCHES	MICRON
TWILL	60 X 60	.0110	.0057	145	11.7	43.3
TWILL	60 X 60	.0100	.0067	170	16.2	38.3
TWILL	80 X 80	.0070	.0055	140	19.4	27.7
TWILL	270 X 270	.0016	.0021	53	32.2	4.8
TWILL	325 X 325	.0014	.0017	43	30.0	4.3
TWILL	400 X 400	.0011	.0014	36	31.4	3.4
TWILL	500 X 500	.0010	.0010	25	25.0	*
TWILL	635 X 635	.0008	.0008	20	25.0	*

SS 316 Twill Weave Wire Mesh

Mesh	Wire Dia.(MM)	Opening (MM)	Material (AISI)
250	0.040	0.063	316
300	0.040	0.044	316
325	0.035	0.043	316L
350	0.030	0.042	316L
400	0.030	0.033	316L
450	0.028	0.028	316L
500	0.025	0.026	316L
