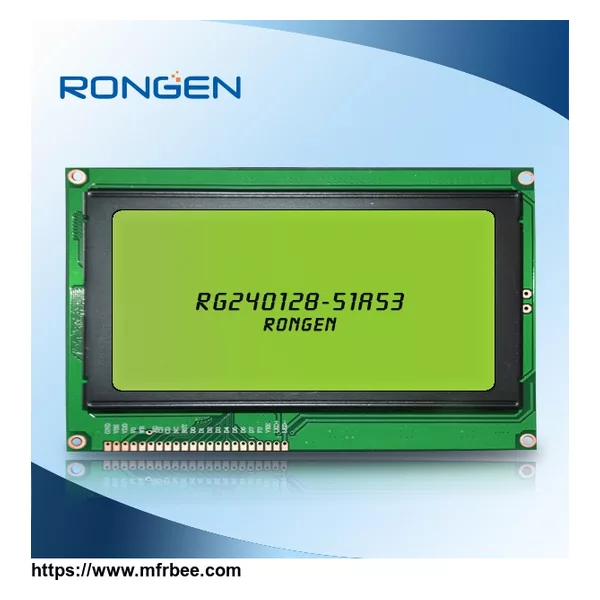

Item | Contents |
LCD Type | STN |
Display Color | Black |
Background color | Y/G |
View Direction | 6 O'Clock |
Operating Temperature | -20+70 °C |
Store Temperature | -30~+80 °C |
Outline dimension | 144x104x13mm Max |
Active Area(W×H) | 104.75x57.55mm |
Number of Dots | 240x128 dots |
Controller | T6963 |
Dot size | 0.41x0.4mm |
Power Supply Voltage | 3.3V |
Backlight | LED Y/G |
Weight |
|
Interface | 8Bit |
