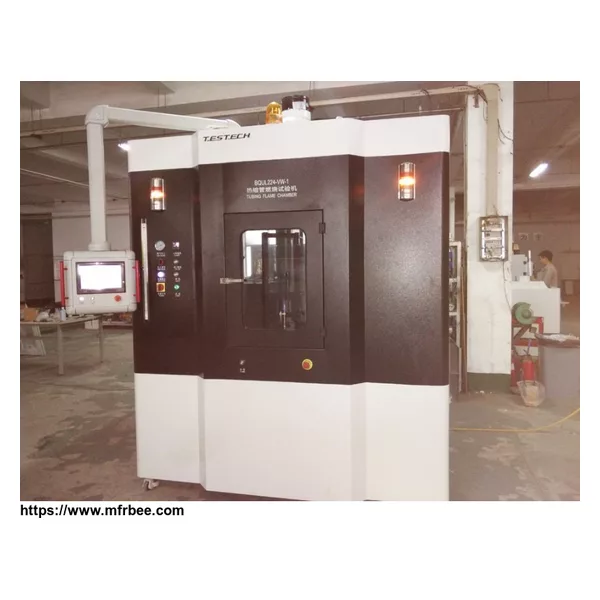

Vertical Cable VW-1 Flame Tester UL 1518

Place Of Origin
chongqing
Power
AC220V 50/60Hz, 1A
Size
2150mm X 1200mm X 2150mm
Minimum Order
1
Model
UL1518
Weight
300KG
Packaging
plywood
Delivery
15 Days
Introduction:

cable horizontal and vertical burning test apparatus(VW-1)is designed according to UL1581 sect 1080.1~1080.14, and meet the criteria of VW-1(Vertical-specimen) Flame Test. It can be used to test of 1060 products wire and cable FT1 and vertical burning test,1080 VW-1 test, 1061 test, 1090 horizontal test and 1100 horizontal specimen or FT2 test;to assess the flame spreading ability to combustible near by of cable or flexible wire when it caught fire.The whole test is carried out in a sealed test chamber with a volume of 4.32 M3.

International standards:
1. UL1581
2. ASTM D5025
3. ASTM D5207

Features:

1, The test chamber is electrolytic plate electrostatic spraying, elegant appearance, and inside is roasted black.

2, The tester is equipped with powerful exhaust fume extractor, when the test is complete, open and air supply system and exhaust to the outdoors, and during the test, the system is closed;

3, The air throttle is equipped behind the test chamber.After the completion of the test, open the ventilation system to air distribution in the cabinet,But during the testing, the air door should be closed.

4, The glass viewing window is on the front box, allowing easy observation during the test.

5,The test chamber is equipped with sealed glove to operate the burner inside.

6, Test chamber size: available space 2.1M (l) *1M (w) *2.1M (h), capacity: 4.48m3. Dimensions 2.4m (l) *1M (w) *2.3M (h).

Control system:

1, PLC with touch screen control system achieving testing process automatic control.

2, The test time can be set freely by customers;

3, Combustion both vertical and horizontal burning test mode;

4, An experimental system automatically calculates and stores the test data.

5, Burning settings: 0-999.99 seconds to set arbitrary

6, To stop burning set: 0-999.99 SEC to set arbitrary

7, Burning count: 0-999 set


Specification:

Size 2150mm x 1200mm x 2150mm
Power AC220V 50/60Hz, 1A
Air source methane gas (customer-owned)
Model GD1581
