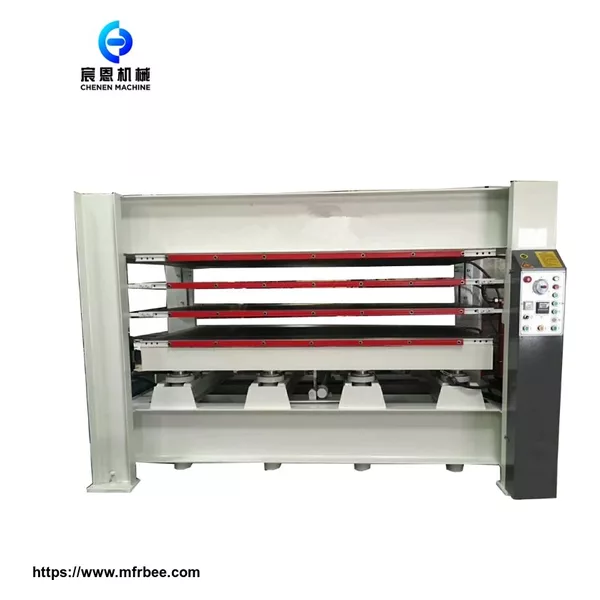

3 layer hydraulic hot press machine
Product Quick Detail
- FOB Price
- USD $12,500.00 / Piece
- Place Of Origin
- china
- Minimum Order
- 1
- Packaging
- 60000kg
- Delivery
- 15 Days
Specifications
| Model | BY214x8/16(3)H |
| Total pressure | 120ton |
| Feeding direction | Transversal |
| Dimension of hot platen | 1300x2600x42mm |
| Number of layers | 3 |
| Number of platens | 4 |
| Stroke | 150mm |
| Diameter Oil cylinder | Ф100mmx |
| Number of cylinders | 6 |
| Low pressure pump flux | 63L/min |
| High pressure pump flux | 2.5L/min |
| Heating medium | Steam or thermal oil |
| Frame structure | welded |
| Working pressure | 25Mpa |
| Total power | 33kw |
| Number of stainless steel plates | 4 |
- Country: China (Mainland)
- Business Type: Manufacturer
- Market:Americas,European Union
- Founded Year:2015
- Address:jianshe streeet
- Contact:lawrence li
