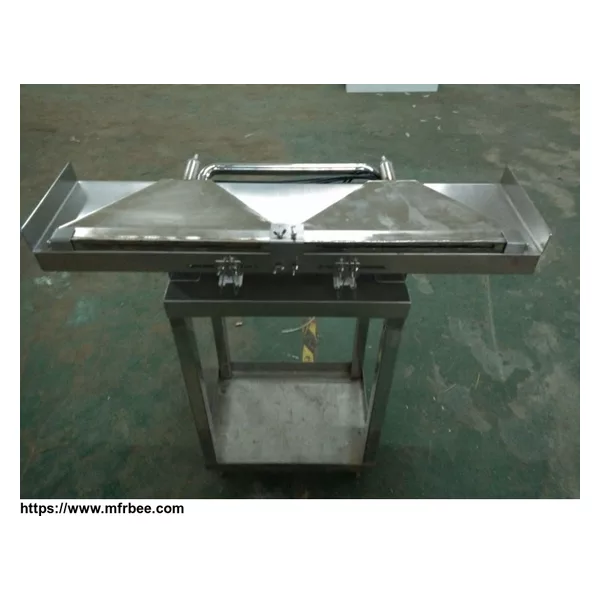

Bunched Cable Vertical Flame Spread Tester Gbt18380b
Product Quick Detail
- Place Of Origin
- chongqing
- Minimum Order
- 1
- Model
- 18380
- Packaging
- plywood
- Delivery
- 15 Days
Specifications
Bunched Cable Vertical Flame Spread Tester is used to bundle cable orfiber optic cable to detect vertically mounted under specified conditions forvertical flame spread inhibiting the ability of the instrument, the power cables,control cables, fiber optic cable bundle burning test Preparation means. Whengiven a certain amount of housing supply of gas and the use of standardignition source of ignition, this instrument can be used to test for verticalflame vertical flame vertical diffusion to electric cables and wires of state.In addition, if the tester burner adjustment of 20 degrees can be achieved byIEEE 383 (IEEE 1202) testing standards. Equipment can be equipped with heatrelease instrument configure the port, with the gas analyzer can measure thethermal power values such as HRR (heat release rate),SPR(smoke generationrate) and so on
International standards:
1. UL1685
2. IEC 60332-3-10
3. EN 50399
4. GB/T 18380.31
Features:
1, high intelligence, easy tooperate;
2, professional industrialdesign, beautiful, generous;
3, precision equipment, security,and stability;
4, microcomputer control system,intelligent testing process; no manual timing and related operations;
5, corrosion-resistant stainlesssteel housing;
Control system:
1.PLC withlarge-screen touch screen control system;
2, automaticignition system, automatic timing; Timing range 999min, accuracy 1s;
3, experimental datais automatically stored, free inquiry;
4, 40 minutes, 1hour timekeeping reminders;
5, the specimenmounts with electric crane lift.
Specifiction:
| Size | 1,000(w) × 2,000(D) × 4,000(H) |
| Console Size | 600 (W) × 750 (D) × 1,600 (H) mm |
| Power | AC 220V, 50 / 60hz, 15A |
| Weight | 1500KG |
| Utilities | Propane Gas Valve System, Ignition System |
