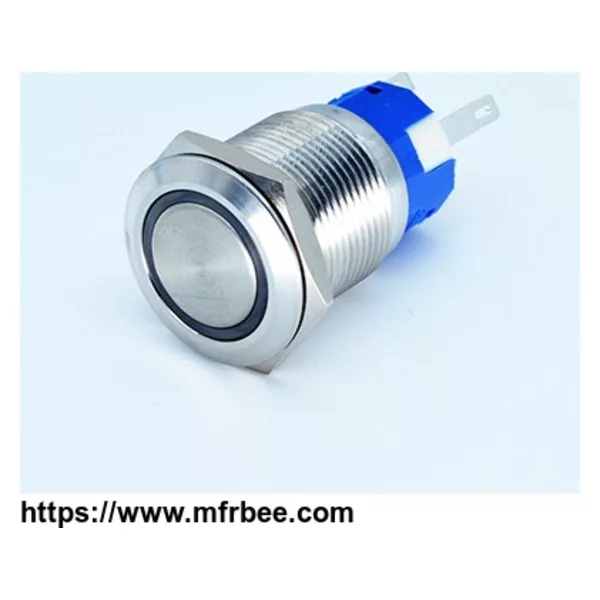

19mm ring LED IP67 waterproof momentary /latched metal push button switch
Product sourcing details
- Place Of Origin
- China (Mainland)
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- N/A
Specifications
mounthing hole size:19mm
switch rating:5/250VAC
Switch combination:1NO1NC/2NO2NC
Operation type:resetable/self-locking
head shape:flat
Lamp type:ring illuminated
Enclosure material:nickel plated brass/stainless stell,Contact:Silver Alloy,Base:PA66
Contact Resistance:≤50mΩ
insulation resistance:>1000mΩ
Dielectric intensity:2000VAC,Ambient temperature:-20℃--+55℃
Panel thickness:1-10mm,Nut Torque:5-14NM
Rated led voltage:6V/12V/24V/110V/220V
Led color:Red Orange Yellow Green Blue White
Mechanical life:500000 cycles
Protection Level:IP67,IK10
Certificate:CE UL TUV Rohs CQC
