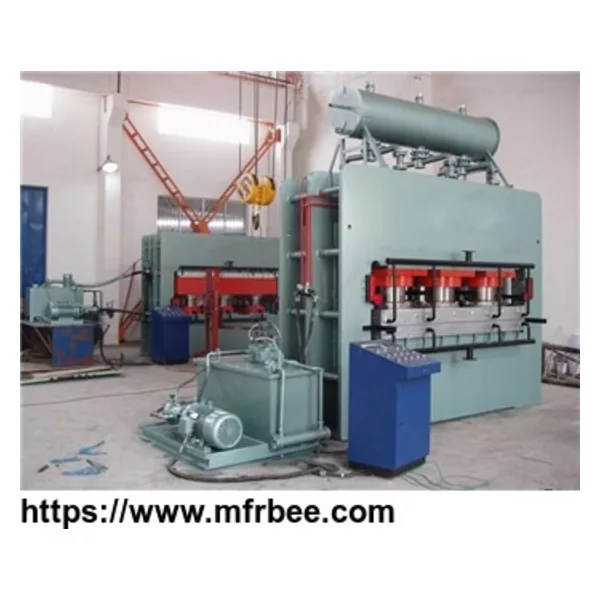

BY21-4*8/1200-1 short cycle mdf melamine laminate hot press machine

Minimum Order
1
Place Of Origin
China
Packaging
N/A
Delivery
15 Days
1. Function: press melamine paper onto MDF, particle board
2. Production capacity: 1200 sheets in 10 hours
3. Board loading direction: from 2600mm side of the machine
4. Hot platen size: 1400*2600*120mm
5. Quantity of hot platens: 2 sheets
6. Quantity of floors: single floor
7. Distance between hot platens: 300mm
8. Hydraulic cylinders: 6 units diameter 320mm, 2 units, diameter 110mm
9. Pressure capacity: 1200 tons
10. Stroke of hydraulic cylinders: 300mm
11. Hydraulic cylinders place: Top
12. Hydraulic system pump: 10ml/rev, prefill valve, manifold block
13. Limit pressure: 25 M pa
14. Control method: Manual and Automatic control
15. Hot platen closing time: about 5 Seconds
16. Motor Power: 5.5KW
17. In feed method: frequency control loading car
18. Out feed method: roller bracket
19. Frame style: Combination frame, two groups of frames
