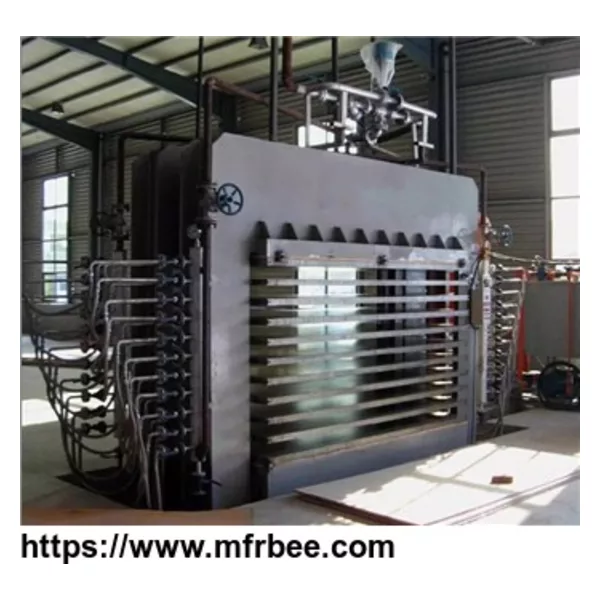

BY21-4*8/600-10 film faced plywood hot press machine

Minimum Order: 1

Place Of Origin: China

Packaging: N/A

Delivery: 15 Days

1. Hot press plate size: 2450*1250*52 mm, 10 sheets

2. Opening size: 100 mm

3. Hydraulic pistons: 4 units, diameter 260mm, stroke 1000mm

4. Pressure Capacity: 600 Tons

5. Hydraulic System: hand and automatic control

6. Hydraulic System allowed pressure:25 M pa

7. Low pressure Pump: 250 ml/rev,11KW motor

8. High pressure Pump: 10 ml/rev, 5.5KW motor

9. Heating Medium: Steam or Heat Transfer Oils
