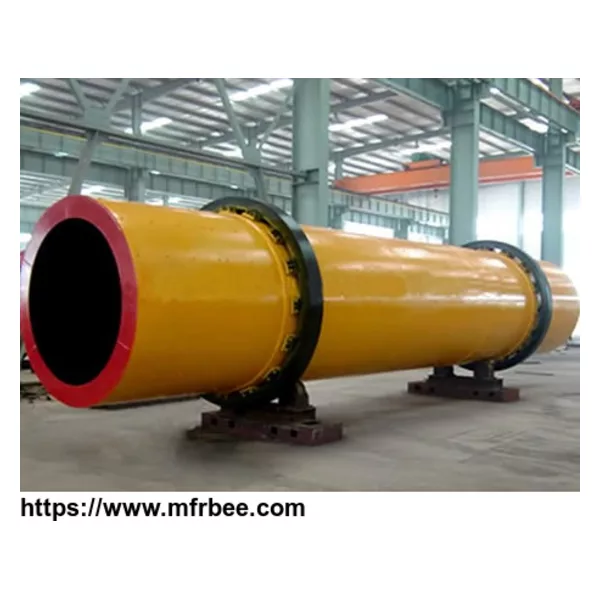

High Efficiency Wood Sawdust Rotary Drum Dryer

Instruction of High-Efficiency Wood Sawdust Rotary Drum Dryer

High-efficiency wood sawdust rotary drum dryer(www.ft-dryer.com) is widely used for drying materials in the industries of cement, mine, construction, chemical, food, compound fertilizer, etc. Feeding and discharging unitisinstalled with the thermocouple to control drier temperature. The temperature change of drier's feeding end can be indicated by the thermometer to control the inner drier temperature ( generally 250-350°C)

Features of High-Efficiency Wood Sawdust Rotary Drum Dryer

1.New feeding, nesting devices, to eliminate the feeding roller dryer plug, not continuous, uniform and returning materials and so reduce the load of dust removal system

2. New internal structure strengthens the cleaning materials that have been scattered and thermal conduction, the cylinder wall adhesions eliminate the phenomenon of the material moisture.

3.The content of water and the granularity can be controlled according to the users’ requirements, the moisture content of the product can be controlled below 8%, particle size can be controlled in the following 8mm.

Working Principle of High-Efficiency Wood Sawdust Rotary Drum Dryer

1.Wet materials are sent to the hopper by belt conveyor or bucket elevator.

2.Through the feeding hole set that in the spiral guide plate, the wet material gets into drying cylinder.

3.Materials in drying cylinder will be rasing by the equally distributed lifting plate and fully contacted with the hot air.To achieve the heat transfer, mass transfer drying purpose.

4.Dried materials discharged at the end of the cylinder, transported out by the conveyor, finished the drying process.
