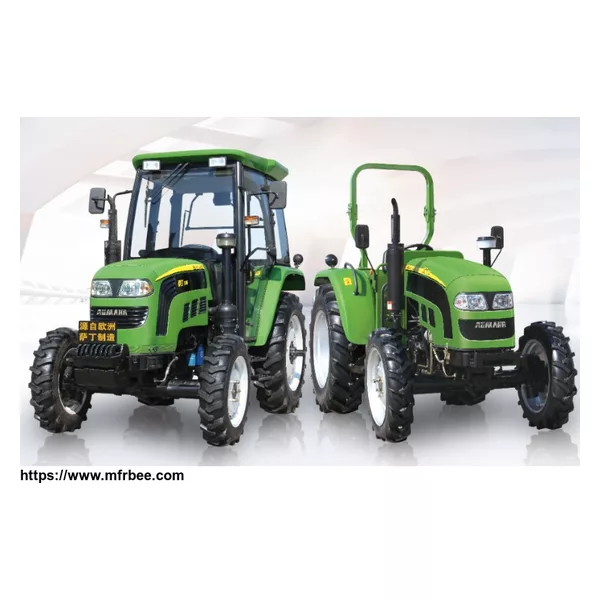

SADIN SD704-904 TRACTOR
Product Quick Detail
- FOB Price
- USD $15,000.00 / Piece
- Place Of Origin
- CHINA
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
| SD704-904 TRACTOR: 70HP-90HP, 4WD,FOUR CYLINDER ,12F+12R SHUTTLE SHIFTS,POWER STEERING,DOUBLE STAGE CLUTCH,DOUBLE SPEED PTO:540/760RPM,EURO NEW HOOD,TYRE:8.3-24/14.9-30,AIR-BRAKE,HYDRAULIC OUTPOINT, | |||
| Model | SD704 | SD804 | SD904 |
| Type | 4×4 Wheeled tractor | ||
| Overall dimension（mm） | length | 3900 | |
| width | 1850 | ||
| Height | 2700 | ||
| tread（mm） | Front Wheel | 1450 | |
| Rear Wheel | 1408 | ||
| wheel base（mm） | 2010 | ||
| Ground Clearance（mm） | 310 | ||
| Structureweight（kgs） | 2660 | ||
| Front Wheel ballast（kg） | 144 | ||
| Rear Wheel ballast(kg) | 360 | ||
| ENGINE | Type | vertical, water cooled,four cylinder,four stork | |
| Rated rev. (r/min) | 2300 | ||
| Rated power (KW) | 51.5 | 58.8 | 66.2 |
| clutch | Dry-friction,double stage | ||
| Transmission system | gearbox | 12F+12R shuttle shifts | |
| central transmission | Gear sector | ||
| Tractor brake | Hydraulic brake,discs | ||
| Tyre | front wheel | 8.3-24 | |
| Rear wheel | 14.9-30 | ||
| PTO shaft rev. | 540r/minand 760r/min |
- Country: China (Mainland)
- Business Type: Manufacturer,Distributor/Wholesaler
- Market:Africa,Americas,Asia,Middle East,Oceania
- Founded Year:2012
- Address:Sadin Industry Zone,south of Beihai Road,Weifang city
- Contact:Henry Dai
