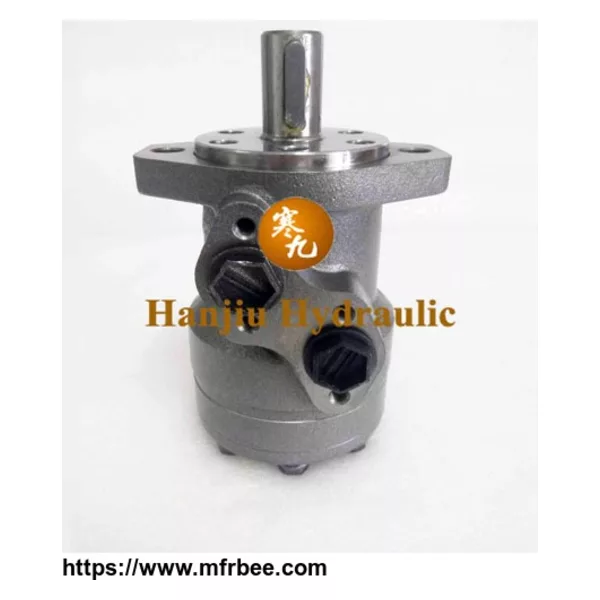

Hydraulic Orbit Motor BMR

BMR series motor adapt the advanced Gerolor gear set design with shaft distribution flow, which can automatically compensate in operating with high pressure , provide reliable and smooth operation, high efficiency and long life.
Characteristic Features:
*Advanced manufacturing devices for the Gerolor gear set, which use low pressure of start-up, provide smooth, reliable operation and high efficiency.
*Shaft seal can bear high pressure of back and the motor can be used in parallel or in series.
*Special design in the driver-linker and prolong operating life
*Special design for distribution system can meet the requirement of low noise of unit.
*Compact volume and easy installation.

Order Code:

Code
BMR
Displacement
36 50 80 100 125 160 200 250 315 375
Flange
2	2-Ø13.5 Rhomb-flange,pilot Ø82.5×8
4	4-Ø13.5 Rhomb-flange,pilot Ø82.5×8
H4	4-3/8-16 Square-flange,pilot Ø44.4×2.8
H5	4-M10 Square-flange,pilot Ø44.4×2.8
Output Shaft
A	Shaft Ø25,parallel Key 8x7x32
B	Shaft Ø32,parallel Key 10x8x45
C	Shaft Ø25.4,parallel Key 6.35x6.35x31.75
E	Shaft Ø25.4,splined tooth SAE 6B
R	Short shaft Ø25.4,parallel key 6.35x6.35x31.75
F	Shaft Ø31.75,splined tooth 14-DP12/24
FD	Long shaft Ø31.75,splined tooth 14-DP12/24
G	Shaft Ø31.75,parallel Key 7.96x7.96x31.75
T	Cone-Shaft Ø28.56,parallel Key B5x5x14
Port and Drain Port
D	G1/2 Manifold Mount 4-M8, G1/4
M	M22×1.5 Manifold Mount 4-M8, M14×1.5
S	7/8-14 O-ring manifold 4-5/16-18UNC, 7/16-20UNF
P	1/2-14 NPTF Manifold 4-5/16-18UNC,7/16-20UNF
R	PT(Rc)1/2 Manifold 4-M8, PT(Rc)1/4
Rotation Direction
Omit	Standard
R	Opposite
Paint
00	No paint
Omit	Blue
B	Black
S	Silver grey
Unusually Function
Omit	Standard
N	Big radial force
O	No case drain
F	Free Running
LS	Low Speed
