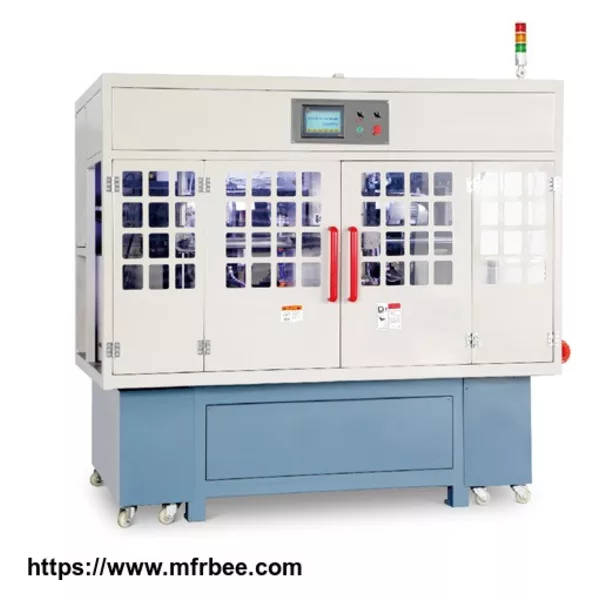

KTMGP-300L Full Automatic Six Shaft Polishing Machine (Robot Arm)
Product Quick Detail
- Place Of Origin
- Jiangsu
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Machine features
● The machine is used for carbide circular saw blades and diamond saw blade surface polishing equipment.
● Spindle turntable uses segmentation, the implementation of the six-axis continuous rotation job.
● Using a special mechanism automatically turn piece, monolithic positive and negative once polished to complete, without manual turning sheet.
● Automatic unloading robot, automatic PLC program is running.
● Sucker all using electromagnets, automatic air-cooled, automatic dust removal.
● Loading, unloading zone using multi-position, without downtime continuous, stable performance, high efficiency, middle class around 3000 (7 "), a person can operate multiple devices.
Technical date at a glance
| Outer diameter | ф100—ф300mm |
| Bore diameter | ф15—ф50mm(Special specifications can be customized) |
| Belt size | 1150×35mm |
| Belt grit | 150# 180# 280# |
| Working air pressure | ≥0.5MPA |
| Total power | 7.5KW |
| Voltage | 380V |
| Net weight | 1800KG |
| Dimensions | 2150×1700×195mm |
