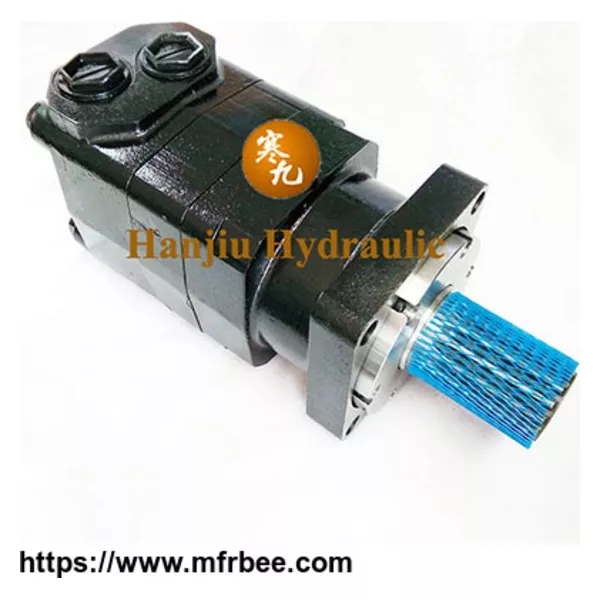

Hydraulic orbit motor BMV

BMV series motor adapt the advanced Gerotor gear set, design with disc distribution flow and high pressure. The unit can be supplied theindividual variant in operating multifunction in accordance with requirement of applications.
Characteristic Features:
*Advanced manufacturing devices for the Gerotor gear set, which use low pressure of start-up, provide smooth and reliable operationand high efficiency.
*The output shaft adapts in tapered roller bearings that permit high axial and radial forces. Can offer capacities of high pressure and hightorque in the wide of applications.
*Advanced design in disc distrbution flow, which can automatically compensate in operating with high volume efficiency and long life,provide smooth and reliable operation.

Order Code:

Code
BMV
Displacement
315 400 500 630 800 1000
Flange
4	4-Ø18 Square-flangeØ200,pilot Ø160×11
W	4-Ø18 Wheel-flange Ø224,pilot Ø180×10
Output Shaft
A	Shaft Ø50 , parallel key 14×9×70
BD	Shaft Ø53.975, splined key 16-DP8/16
B	Shaft Ø53.975, splined key 16-DP8/16
C	Shaft Ø57.15, parallel key 12.7×12.7×57.15
T	Cone shaft Ø60, parallel key B16×10×32
T1	Cone shaft Ø60, parallel key 14.308×14.308×50.8
Port and Drain Port
D	G1 Manifold 4×M12, G1/4
M	M33×2 Manifold 4×M12, M14×1.5
S	1-5/16-12UN, 9/16-18UNFG1,
G	G1/4
M5	M33×2, M14×1.5
S1	1-5/16-12UN(18),7/16-20UNF(12)
Rotation Direction
Omit	Standard
R	Opposite
Paint
00	No paint
Omit	Blue
B	Black
S	Silver grey
Unusually Function
Omit	Standard

Note: When the table is used, please fill the code in the table and give us the complete order code you need. The code information consists of construction, displacement, mounting flange, output shaft and ports . For more details about Performance data, Dimensions & mounting data, Shaft extensions, etc., please download our catalogue at here.

Main Specifications:

Type	BMV 315	BMV 400	BMV 500	BMV 630	BMV 800	BMV 1000
Geometric displacement (cm3 /rev.)	333	419	518	666	801	990
Max. speed (rpm)	cont.	510	500	400	320	250	200
int.	630	600	480	380	300	240
Max. torque (N·m)	cont.	920	1180	1460	1660	1880	2015
int.	1110	1410	1760	1940	2110	2280
peak	1290	1640	2050	2210	2470	2400
Max. output (kW)	cont.	38	47	47	40	33	28.6
int.	46	56	56	56	44	40
Max. pressure drop (MPa)	cont.	20	20	20	18	16	14
int.	24	24	24	21	18	16
peak	28	28	28	24	21	18
Max. flow (L/min)	cont.	160	200	200	200	200	200
int.	200	240	240	240	240	240
Weight (kg)	31.8	32.6	33.5	34.9	36.5	38.6

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
