Light Weight Low Headroom 5 ton 20 ton Traveling Overhead Bridge Crane Price

Low Headroom Overhead Crane Introduction

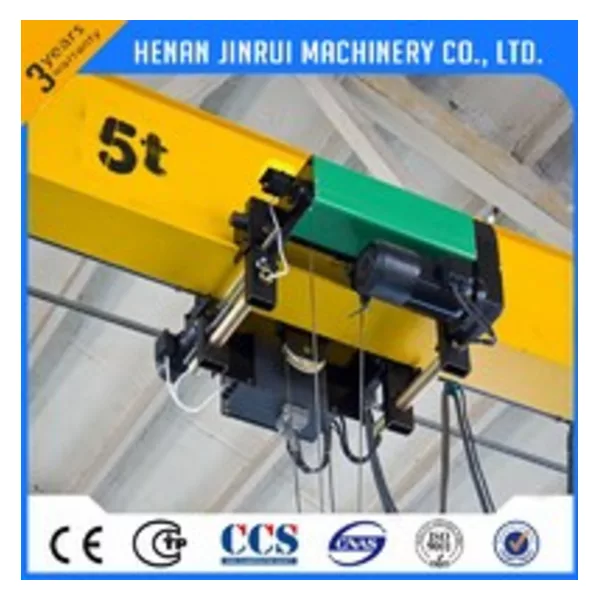

LDP Single Beam Bridge Crane is Low Headroom Overhead Crane, with much higher lifting height and larger working space than LDA overhead crane, save cost of workshop building, are used for loading and unloading material, wide spans, high working frequency, consist of steel box shape bridge beam, end beam, electric hoist and other electrical parts to achieve perfect construction stability.
The Low Headroom Overhead Cranes main girder are optimally produced using a integrated technology which is weld-less, so that maximum performance with a minimum of deadweight can be achieved, are especially suitable for lifting and transporting loads over 1 ~ 20 ton and for span is not more than 25m, load capacities up to 32 ton and spans up to 31m.

Low Headroom Overhead Crane Specification
Capacity: 1-20 ton
Span: 6 -31.5 m
Lifing heihgt: 6 -18 m
Working grade: A3-A5

Working temperature: -25 to +42 centigrade

Three control methods can be chosen
1. Pendent control, easy to operation when observation and communicate with other workers.

2. Wireless remote control, greatly improve the work efficiency, keep the operator from danger.

3. Cabin room control, the driver seat has adjustable height and rotation.

We have four workshops, they are responsible for light-small type material lifting and transporting machines.

Floor mounted jib crane;

Small jib crane;

Up to now, our crane machinery of JR Crane have exported to Saudi Arabia, Bangladesh, Kazakhstan, Uzbekistan, Kenya, South Africa, Qatar, Jordan, Myanmar, Thailand, Romania, Russia, Germany, Australia, Philippines, Brazil, Chile, Singapore etc. , total more than 50 countries.

Low Headroom Overhead Crane Technical Features
1. Low Headroom Overhead Crane main steel material shall not be less than the provisions of Q235 in GB700-88.
2. The Low Headroom Overhead Crane connecting steel structures shall comply with GB1228 ~ 1231, such as high strength bolts, nuts and washers.
3. Low Headroom Overhead Crane welds shall be in the form of GB985 and GB986.
4. The inspection of welds must meet the requirements of GB3323 and GB11345, must inspect by X-ray or ultrasonic.
5. Low Headroom Overhead Crane Motors are used specially crane duty suitable for frequent starting, reversing and braking with ISO 9001:2000 ISO 14001:2004, enclosed in dust-proof construction foot-/flange-mounted TESC/TEFC, Sq cage motors with integrated safety brakes, insulation class F, IP54 protection for hoisting, CT and LT motions
6. Entire gear boxes are made of accurate hob cut helical/spur gears and pinions, having hardness 250 to 350BHN made from carbon alloy steel
7. Independent hydraulic brake make the crane more safe and easier to control
8. The gear design for adequate strength and optimum wear resistance for smooth operation and long lifespan
9. Vacuum casting workshop (no sand inclusion technique) which makes our wheels more elastic and outer surface hard-wearing and durable
10. Good painting, primer and finishing paint
