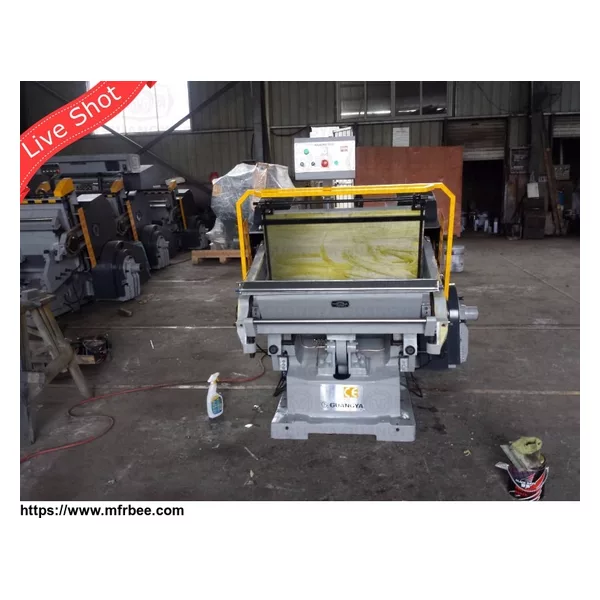

ML 203 Manual Die Cutting Machine
Product Quick Detail
- FOB Price
- USD $9,500.00 / Piece
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- Wooden Case
- Delivery
- 35 Days
Specifications
Our Automatic Paper Sheet Platen And Pvc Card Embosser Die Cut Machines is an indispensable piece of post press equipment which is widely used for die cutting, and creasing of adhesive stickers,
carrier bags, book covers, packing boxes, greeting cards, desk calendars, corrugated cartons, etc. It can effectively cut the desired material into large numbers of the same shape.
Feature:
1. Automatic Paper Sheet Platen And Pvc Card Embosser Die Cut Machines adopting whole body casting process with high quality to ensure high strength;
2. Smooth running, high pressure and low noise due to 3 steps helical gear mechanism;
3. Single plate electromagnetic clutch is sensitive and reliable;
4. Rational layout of operate altitude, wide-angle of moving-bed working;
5. The electric system meets IEC standard;
6. Single and continuous operating available, Time relay also can be adjusted;
7. Reliable protective system.
|
Technical Parameter
|
|
|
Model
|
ML 203 Die Cutting Machine
|
|
Inside chase size
|
930*660 MM
|
|
Max. die cutting size
|
930*660 MM
|
|
Speed
|
25 Sheets / Min
|
|
Max. chase length
|
26 MM
|
|
Motor power
|
4 KW
|
|
Gross weight of machine
|
3000 KG
|
|
Overall machine dimensions
|
1960*1760*1720 MM
|
|
Configuration of chase
|
Active
|
