Digital Lower Limb CPM with hand control function

Place Of Origin
China (Mainland)
Minimum Order
1
Packaging
1set/ctn,93*40*40cm,GW.21kgs
Delivery
15 Days


Aria

Tel:+86 592 5566387

Fax:+86 592 5500918

Mobile/WhatsApp/Wechat:+86 18159410906

Email: sales1@ticare.net

Website: www.ticare.com.cn

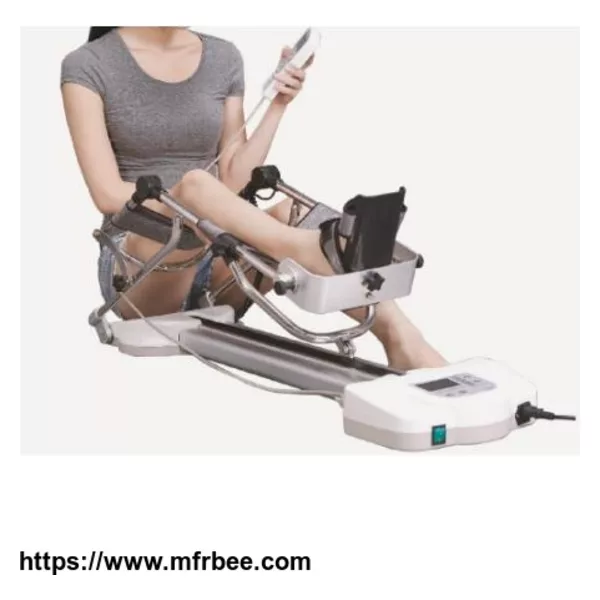

Digital Lower Limb CPM with hand control function


Main structure: made up of host computer, supporting pole, leather cushion, hand controller,foot plate
Functional scope : Work on knee/ankle/hip joints
Production Feature: -High volume CPU control setting ,display and controlled by both machine and motion controller.

-Big screen liquid display in English(or Chinese), all the parameters can be read clearly.

-With palmtop microcomputer controller, easy to use, beautiful fashion.
-Can automatically controlled, including motion angle range and speed.
-With torque setting function, safe and reliable.
-Use the motion support fitting for physiology curve.
-Normal adult use, the average height below 1.9 meters.
-Working noise <65dB.

Operating Feature: -When device be turn on,it will display with the data of last operation,user change the original data according to the specific situation.

-Parameter can be set at any time according to need in the process.
-The manual control parts convenience for patient control the device to suspend or stretch/buckling.

Adjustable Range: -Angle motion range of kneel joint: -5°—120°(±5°)

-Angle motion speed range of hip joint: 25°—100°

-Angle motion speed range of ankle joint: 0°—40°

-Angle motion speed range: 0.5°—3.5°/s

-Angle motion range of foot plate: ≤40°

-divide to 9 adjustable gears.

Power Specification: -The rated load is 200N,device can be smoothly working without clamping stagnation under rated load,reciprocating run without abnormal sound.

-Device be able to continuously working smoothly more than 2 hours under rated load.
-The rated working voltage: 220 VAC ± 22VAC
-Input power: 70VA

PCS/CTN CTN SIZE GW.
1pc/ctn 110*48*38cm(0.2cbm) 17kgs

We ,Ticare Medical Instruments Co., Ltd. is a professional Supplier in China.

We focus on High Quality Products,Competitive Prices,Excellence Services and Professional Continuous Development.

All Of Our Products Have both ISO and CE certitifcare!

All Of Our Products Have been Exported to Many Countries And Regions,Such As Europe,USA,Middle East,South Africa,South America and so on.
