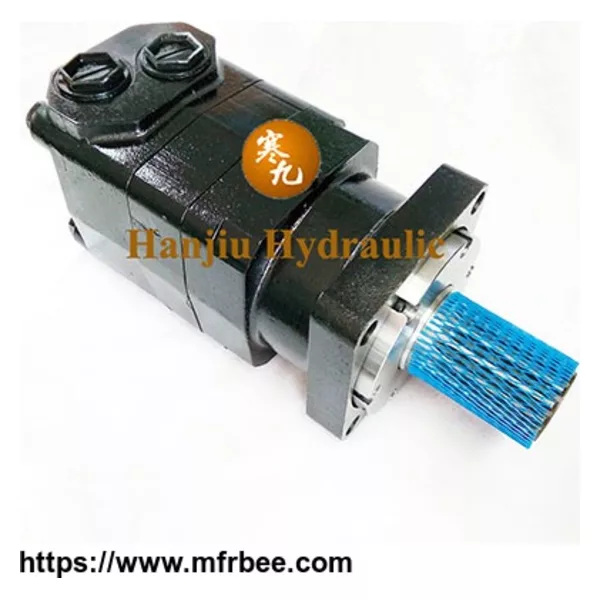

Hydraulic orbit motor BMV

BMV series motor adapt the advanced Gerotor gear set, design with disc distribution flow and high pressure. The unit can be supplied theindividual variant in operating multifunction in accordance with requirement of applications.
Characteristic Features:
*Advanced manufacturing devices for the Gerotor gear set, which use low pressure of start-up, provide smooth and reliable operationand high efficiency.
*The output shaft adapts in tapered roller bearings that permit high axial and radial forces. Can offer capacities of high pressure and hightorque in the wide of applications.
*Advanced design in disc distrbution flow, which can automatically compensate in operating with high volume efficiency and long life,provide smooth and reliable operation.

Main Specifications:

Type	BMV 315	BMV 400	BMV 500	BMV 630	BMV 800	BMV 1000
Geometric displacement (cm3 /rev.)	333	419	518	666	801	990
Max. speed (rpm)	cont.	510	500	400	320	250	200
int.	630	600	480	380	300	240
Max. torque (N·m)	cont.	920	1180	1460	1660	1880	2015
int.	1110	1410	1760	1940	2110	2280
peak	1290	1640	2050	2210	2470	2400
Max. output (kW)	cont.	38	47	47	40	33	28.6
int.	46	56	56	56	44	40
Max. pressure drop (MPa)	cont.	20	20	20	18	16	14
int.	24	24	24	21	18	16
peak	28	28	28	24	21	18
Max. flow (L/min)	cont.	160	200	200	200	200	200
int.	200	240	240	240	240	240
Weight (kg)	31.8	32.6	33.5	34.9	36.5	38.6

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

Hydraulic orbit motor applications:
Brush cutters
Mower
Haveresting equipment
Forestry equipment
Turf equipment
