Multifunctional pasta production line has always featured high technology, reliability and flexibility in order to ensure not only production of traditional shapes, but also special shapes by means
of cutting devices and additional machines. The automatic macaroni line capacity is featuring output from 80 up to 120 Kg per hour are available, by “batch” or continuous extruders equipped with
vacuum extrusion device and static or continuous dryers, depending on the customers’ specific requirements. We can also customize solutions of other capacities.
1. Raw materials: adopts potato starch, corn starch, cassava starch, wheat flour, corn flour etc as raw materials
2. Capacity: 80-120kg/h, we can also customize other capacities according to your needs.
3. The macaroni processing workshop should be (minimum): width: 5m length: 23m height: 3.0 m
4. Flow chart:
Mixing system---Extrusion system----Cutting system---Drying system---Frying system---Flavoring System --Packing system
5. Voltage : all the voltage frequency of the machines can be made to fit your work environment.
6. Machines materials: All the machines are made by stainless steel to prolong the service life of the equipments.
7. Final Products Show
Every Machine Details
I. Rice Powder Mixer Functions
Mixer makes the raw material adding to water and liquid chemical additive fully mixed.
Mixing Machine Features
1. This part that contacts mixer to material adopts the stainless steel material.
2. The discharge hole adopts the new handle-opened design, good seal and avoids leaking the material.
Rice Powder Mixer Specification
Type
Dimensions
Input Voltage
Installed Capacity
BJ
700×800×1100mm
380V/50Hz
3kw
II. Screw Hoister
Used for conveying the raw material to the feeder of the pasta extruder from the material mixer.
Screw Hoister Specification
Type
Dimensions
Input Voltage:
Installed Capacity
BJ
2000×800×2300mm
380V/50Hz
1.1kw

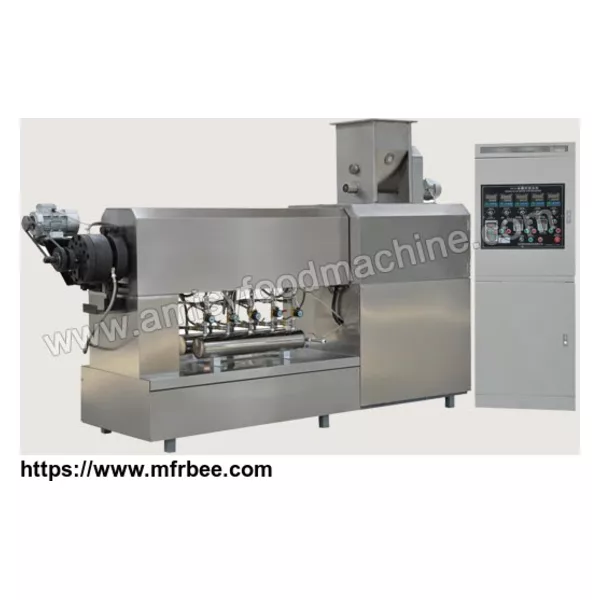

III. Single-screw Macaroni Extruder DL-3000
1.Use the advanced frequency control skill, stable working process and less power consumption;
2. Screw is made by alloy steel, having a longer life-span;
3. Auto heat-control system, easy work and more accurate parameter;
Macaroni Extruder DL-3000 Specification
Type
Dimensions
Input Voltage
Installed Power
Real power
DL-3000
3200×1100×2000 mm
380V/50Hz
40kw
30 kw
IV. Pulling and Cutter machine
1. Pulling cutter is used to cutter long square pipe, circle pipe.
2. Cutter is made of one part with stainless steel net and cut part.
3. It is very easy to operate, adopting frequency controlling.
Pulling and Cutter machine Specifications
Type
Dimensions
Input Voltage
Installed Capacity
PC
2200×800×1500mm
380V/50Hz
2kw
V. Hoister conveyor
1. Hoister can be classified into big and small according to the hoister height and the level distance
2. The conveyor can be classified into rubber tape and stainless steel.
Hoister conveyor Specifications
Type
Dimensions
Input Voltage
Installed Capacity
PC
1300×800×2400mm
380V/50Hz
1.5kw
VI. Drying Oven
It is 5-layer oven, used to bake and dry the food. The oven can bake all kinds of the inflating food, pet food, TVP/TSP food, peanut, nut, chew nut and so on.
Drying Oven Features
1. The oven has compact structure, little space occupying, large drying area, slight radiating heat and high thermal efficiency.
2. The belt and the heat preservation use the stainless steel; it is suitable for food industry.
3. The running speed of belt net can be controlled (frequency)
4. The temperature can be controlled willfully and designed according to the need.
5. Adjustable transit speed of net belt with accurate temperature control device.
6. Double-roller chain and chain drive make stable and smooth running.
7. Sliding board bottom of dryer for easy cleaning.
8. Suitable to dry non-fried extrusion snacks, nutritional powder, bread crumb, pet food, soybean protein, etc.
Drying Oven Technical data
Type
Dimensions
Input Voltage
Power Consumption
HD
6100×1200×2300mm
380V/50Hz
41.25 kw
VII. Air Cooling Conveyor
Used to carry expanded food to the next device
Air Cooling Conveyor Technical data
Type
Dimensions
Input Voltage
Installed Capacity
PC
8000×800mm
380V/50Hz
1.1kw
Relevant Service for Pasta Making Line
1. Output: 80-120Kg/h
2. Square for work shop: 100 ㎡and height 3.0 m
3. Real Power Consumption: 60 kW
4. Voltage / Frequency: 380V / 50Hz (can be changed to your country voltage)
5. Dimension (m): 20.0 x 5.0 x 2.4 m
6. Warranty: At least 1 year from the date of completion of the commissioning.
7. Installation/Operation/ Service/ Maintenance Manual: Provided In English
