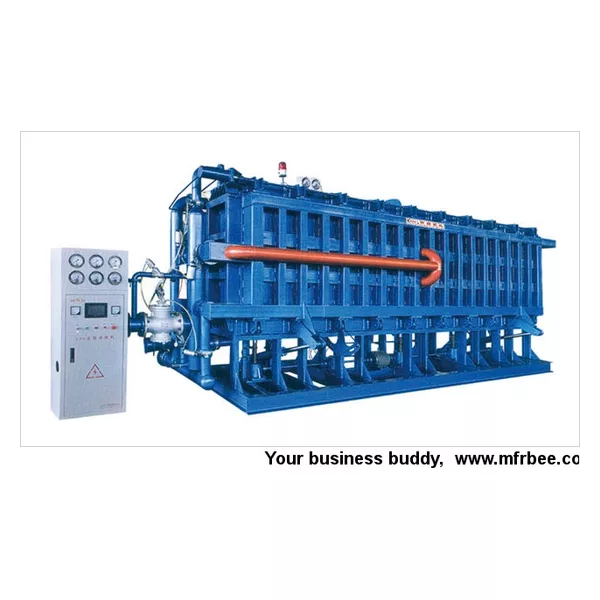

Adjustable Automatic EPS Block Molding Machine
Product Quick Detail
- Place Of Origin
- china
- Packaging
- bulk package or as your request
- Delivery
- 45Days
Specifications
1.Vacuum system of Adjustable automatic EPS shape Machine mainly includes Vacuum storage tank, vacuum cooling tank and efficient water ring vacuum pump, etc.
2.Welded by high quality profile steel with age heating treatment to ensure the machine high strength & without deformation.It can endure the expansive force of high density products.
3.Adopted PLC Controller (Programmable Logic Controller) and Touch Screen to realize automatic circulation of mould opening & closing, feeding, heating, heat preservation, vacuum cooling, demoulding and releasing;
4.Adopted special aluminum alloy in machine cavity ,high thermal conductivity ,good extension and long lifetime.
5.Using overseas advanced through heat molding technique and variable pressure blower
for material feeding and cooling.strong penetrating power leads to good bonding effect
with less steam,fast forming,low moisture content, guaranteeing products inside and outside the same.
6.Equipped with Synchronous transmission with wide adjusting range for machine multi-use.
7.Optional Sulfide drying bed available.
