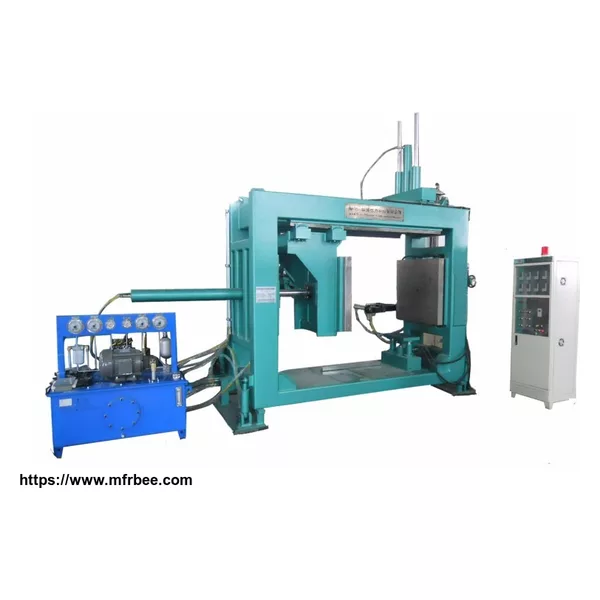

Huaao Standard APG Clamping Machine

Minimum Order
1
FOB Price
USD $50,000.00 / Piece
Place Of Origin
china(mainland)
Packaging
pallet
Delivery
55Days

Technical specifications:


Serial No. Item Technical Parameters
1 Clamping Plate 800*800mm
2 Upper and lower core-pulling stroke 760*350mm
3 Mould clamping force 210KN
4 Mould clamping speed 3.2m/min
5 Max mould clamping distance 1250mm
6 Min mould clamping distance 240mm
7 Power of hydraulic station 5.5kw
8 Heating power 16kw
9 Incliation angle of complete machine Vertical 0-5 degree,Horizontal 0-5 degree
10 Weight of complete machine 4500KG
11 Mould-filling weight 2 tone
12 Outline Dimension 3100(L)*1300(W)*2500(H)mm

Description:

It is large-sized equipment, mould plate as large as
600x800mm, has large upper and lower core-pulling distance.
It is applicable for large-sized products such as transformer,large insulating cylinder, contact cover, bending plate, insulating
housing, disc insulator, etc.

The composition of the APG Claming Machine:The main machine+Mixing device(three sets)+ Stirring rack+Hydraulic Oil Pump+ Power distribution cabinet.

  • Country: China (Mainland)
  • Business Type: Huaao Electricity Technology Co.,Ltd is the only supplier who professional produce: APG machine,APG molds,casting mold and instrument transformer winding machine,what's more,we offer APG technique training overseas,guarantee clients not only know how to op
  • Market:Asia,Americas,Africa
  • Founded Year:2016
  • Address:NO.6-3 ruzhu road,fuzhu pack,, sidu town,Jiangshan,quzhou, zhejiang, china
  • Contact:Tong jeff
