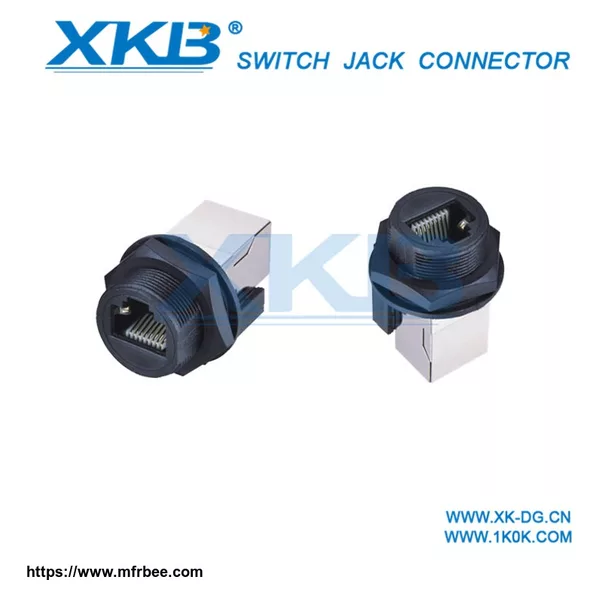

Seal level: IP67 (1 meter underwater immersed for 1 hour) Shock resistance, vibration, anti-misplacement Insertion cable Suspension anti-electromagnetic interference protection No installation tools In addition, compared with other reinforced shell smaller and lighter; Signal attenuation; to prevent unauthorized tap and disconnect; support most of the network services; easy to engineer management and maintenance; highly resistant, including heat, humidity, dust and water interference; excellent expansion and application upgrade potential;

1. Rated current: 1.5A

2. Rated voltage: 125V

3. Insulation resistance: 500Ω

4. Contact resistance: 30MΩ

5. withstand voltage: AC 1000V RMS 50 Hz or 60 Hz 1 minute machine

material

1. Housing: ABS resin (UL94V - 0) PBT (UL94V - 0 compliant) Nylon 66 (UL94V - 0 compliant) Nylon 46 (UL94V - 0 compliant)

2. Contact line: 0.45 mm diameter phosphor bronze gold plated, the thickness of 0.35, nickel-phosphorus bronze alloy Selective nickel plating

3. Shield: 0.20 - 0.25 mm thickness tin plated brass

4. Gold plated: 3U inch, 6U inch, 15U inch, 30U inch, 50U inch

surroundings

1. Operating temperature: -40 ° C to 70 ° C
