Detailed introduction
Pump body of centrifugal pump,vacuum pump,submerged pump,diaphragm pump,gear pump etc,Impeller,Support of the pump are mainly used in Petroleum and chemical industry,water treatment and transport of acid or alkaline solution equipment.
The material of these parts including CF8,CF8M,CF3M,1.4308,1.4408,1.4404 ect.
Normal stainless steel,and high Cr and Ni contains material.

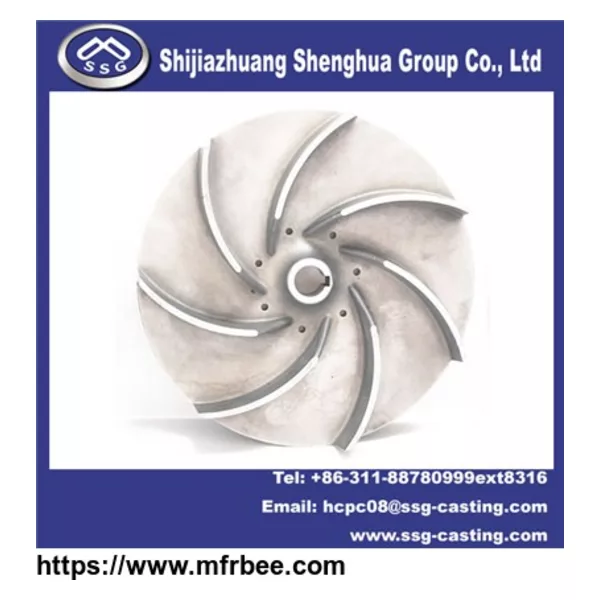

The impeller we produced are all by complex design of the die.No core needed.
Balance machined to be used to test the impeller under different request.
Pump body of centrifugal pump,vacuum pump,submerged pump,diaphragm pump,gear pump etc
Impeller,Support of the pump
Strengths Advantage
Technical Capacity | |
R&D | Software: Solid work, CAD, Procast |
Development Cycle of Samples: 25 to 35 days | |
Material Designation. | More than 150 types |
Technological Parameter | Piece Weight: 2g to 55kg |
Max Dimension: 600mm for Diameter or Length | |
Min Wall thickness: 1.5mm | |
Casting Roughness: Ra 3.2-6.4, Machining Roughness: Ra 1.6 | |
Tolerance of Casting: VDG P690,D1/ CT5-7 | |
Tolerance of Machining: ISO 2768-mk/ IT6 | |
Inner Core: Ceramic Core, Urea Core, Water soluble Wax Core | |
Heat Treatment | Normalizing, Tempering, Quenching, Annealing, Solution Annealed , Quenching & Tempering, Carburization |
Surface Treatment | Polishing, Hand Blasting, Zinc Plating, Nickel Plating, Oxidation Treatment, Phosphating |
The Third Party Inspection | Cleanliness Inspection, X-ray Radiographic Inspection, Magnetic Powder Inspection |
Production Capacity
Designed Capacity: 200 ton per month
Actual Capacity: 150 ton per month
