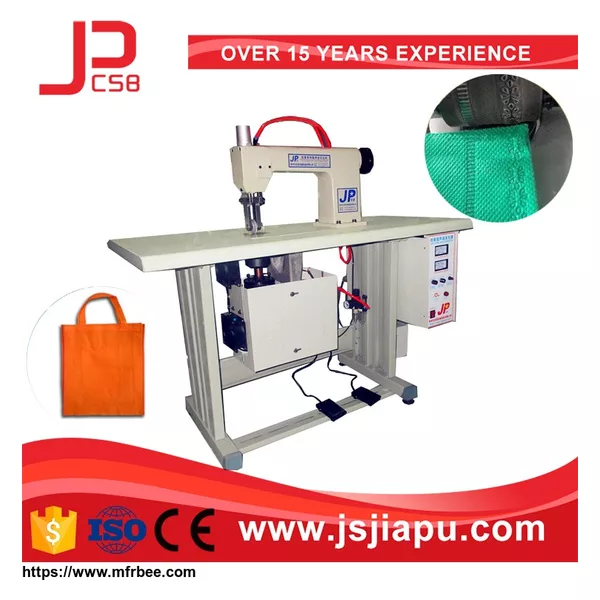

Ultrasonic Nonwoven Bag Making Machine
Technical Specification
Item | Ultrasonic Nonwoven Bag Making Machine |
Model | JP-50B |
Power Source | 220V 50-60HZ |
Inout Power | 1000W |
Output Frequency | 20KHZ |
Working Speed | 0-20M/minute |
Roller Size | 23MM-50mm |
Dimension | 127*63*128CM |
Gross Weight | 140KG |
Working Temperature | -10℃-28℃ |
Features
1. Multi-channel ultrasonic protection system to ensure the safe and stable operation of the host;
2. Super power output, adapt to different materials, thickness of the welding requirements;
3. Flower pattern and diverse, can provide design according to customer needs ;
4. High operation speed , easy to use.
Functions
1.The operations of side scraping and trimming
The side scrap in one side and side melting can be carried out at the same time. It makes the side smooth, no roughness and no coarse side.
2.Make holes
The holes with different patterns can be cut and the treatment of side melting can be carried out too.
3.Transfer printing
Two layers or multi-layers can be melted together. It is not necessary to use thread and needle. This process can replace sewing. Moreover the melted strength is excellent.
4.Cut Material
This machine can cut material for single piece or many pieces at one time. Moreover it can carry out the treatment of side melting. There is no coarse side.
5.Forming
At one time the process of cutting, hole brearking and patter printing can be carried out.
Suitable material :
composite material, thermoplastic film and plastics slice, such as chemical fibrous cloth, nylon cloth, knitting cloth, non spin cloth, gush glue cotton, PE paper, PE + aluminium, PE + cloth, and
so on.
Application:
Suitable for making lace dress, ribbons, decorative products, handkerchiefs, tablecloths, curtains, bedspreads, pillowcases, quilt, tents, raincoats, disposable caps, non-woven masks, nonwovens,
non-woven bags and filter bags etc.
