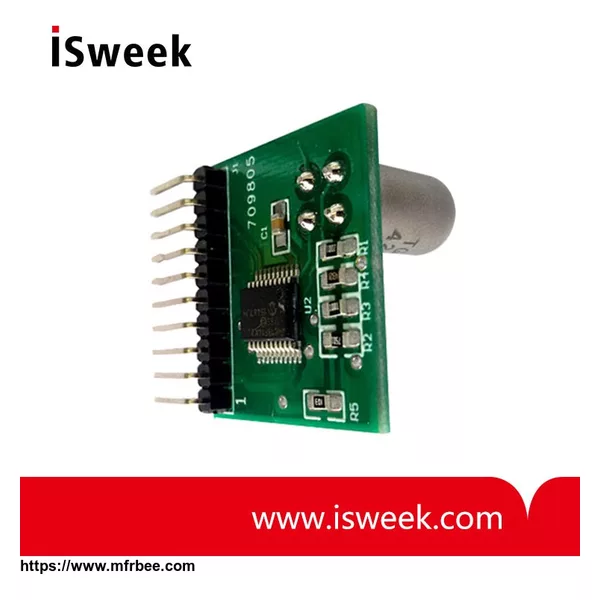

FSM-T-02 Pre-calibrated Methane (CH4) Gas Sensor Module
Product Quick Detail
- Minimum Order
- 1
- Brand Name
- Figaro
- Place Of Origin
- China
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
FSM-T-02 Pre-calibrated Methane (CH4) Gas Sensor Module Description
FSM-T-02 is a pre-calibrated module for methane gas alarm which applies TGS2611-E00 sensor together with optimized classic circuit measuring methane gas concentration. The module is pre-calibrated by Figaro's highly accurate calibration equipment and manufactured with mature aging process. The purpose of the module design is to save the development and production cost of the user to its greatest extent, making it easier and more convenient for them to manufacture gas alarm for civil natural gas.
FSM-T-02 Pre-calibrated Methane (CH4) Gas Sensor Module Features:
* Alarm output can be set through programming
* Continuous pulse output when alarming
* Factory calibrated, temperature compensated
* Compact size, low cost
FSM-T-02 Pre-calibrated Methane (CH4) Gas Sensor Module Applications:
* Front-end solution for methane gas alarm
* Simple methane gas alarm output
FSM-T-02 Pre-calibrated Methane (CH4) Gas Sensor Module Specifications:
|
Name |
Methane gas sensor module |
|
Model No. |
FSM-T-02 |
|
Gas sensor |
TGS2611-E00 |
|
Alarm point concentration |
5%LEL |
|
Accuracy |
±3% LEL |
| Response time (T90) | ≤30 s |
|
Operating |
-10℃~+55℃, 25~95%RH |
|
Storage |
-25℃~+60℃, 20~95%RH |
|
Input voltage |
5.0V±0.2V DC |
|
Power consumption (Max) |
≤0.5 W |
|
Dimensions |
27.2mm×22.8mm×17 mm |
|
Net weight |
Less than 15g |
