Slewing telescopic electromagnetic overhead crane with carrier-beam

1)Brief specification

Lifting Capacity: 30T

Span: 10.5m-31.5m (Non-standard design can be made)

Working Class: A5~A6

Working Temperature: -25°C to ~40°C

Voltage : 380V 50Hz 3-phase

2)Structure

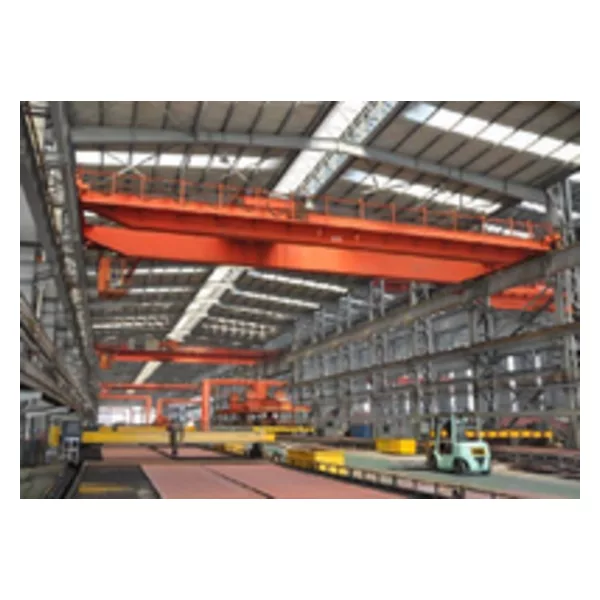

The magnet overhead crane

The spacing of electromagnet can be adjusted electrically and magnetic force of electromagnet can be adjusted through infinitely variable control according to the specifications(different thickness, length and pieces, etc) and eight of the lifted materials the followings can be supplied according to the user’s requirements: Speed governing(1: 10or larger) of the mechanisms, overload& warning, remote control, PLC control, Failure detection, display, record and printing system etc, (the data below is used for indoor)

Technological data：

Safety Features:

Overload protection: If the materials or electric current overstep the capacity, the crane

Emergency brake: If there’s emergency situation, it could stop the crane to protect operator and goods.

Control Method: Room control or remote control to avoid any injure to the operation staff.

Main lifting motor: with thermal protection and currency protection.

Hooks with latch:to prevent goods fall down;

The drawing:

Application:

It is one kind of heavy duty crane, could be classified into several working duties, A5-A7, according to the working frequency and pure working time.

It widely used in plants, warehouses, materials stocks to lift goods or materials. Also could be applied to some special materials such as billet, scrap, slab.
