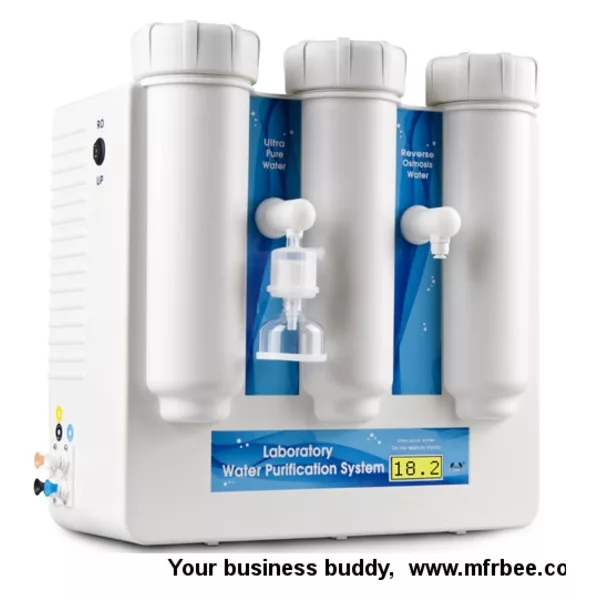

Production of ultrapure water system for used machine

Application
Molecular biology experiment, cell culture,IVF,HPLC,TOC,VOC,GC/MS Analysis, drug development, medical inspection, etc

Flow schematic PF+AC+RO+DI+TF
LV. 1 Special spun fiber filter
LV. 2 Special active caerbon filter
LV. 3 Special active caerbon filter
LV. 4 100 GPD RO membrane
LV. 5 Ultra pure polishing resin cartridge
LV. 6 0.2μm terminal filter

process chat.jpg Specifications

Specification		Standard	Eliminating endotoxin	Low TOC	Comprehensive
Model		Ultra pure	Ultra pure UF	Ultra pure UV	Ultra pure UVF
		Ultra pure plus	Ultra pure plus UF	Ultra pure plus UV	Ultra pure plus UVF
Flow procedure		PF+AC+RO+DI+TF	PF+AC+RO+DI+UF+TF	PF+AC+RO+UV+DI+TF	PF+AC+RO+UV+DI+UF+TF
Application		Microanalysis Environmental analysis AA,ICP,IC Buffer disposing Pharmacy research Medicine examining,	Molecular biology PCR, gene research Pharmacy research Medicine examining, Cell cultivating IVF etc.	Micro organic analysis Environmental analysis HPLC,TOC VOC,GC/MS Pharmacy research Medicine examining,	Molecular biology Micro organic analysis Environmental analysis Pharmacy research Medicine examining Cell cultivating, IVF etc.
Feed water requirement		Tap water: TDS<200ppm,5-45°C,1.0-4.0Kgf/cm² (if inlet TDS>200ppm, extra pretreatment is recommended)
Purification system	Pretreatment unit	Special spun fiber filter (“plus UF/UV/UVF” model: outside 10" spun fiber filter)×1+Special active carbon block filter×1+Special active carbon block filter×1
	RO unit	100GPD RO membrane×1 (“plus” model:2×100GPD RO membrane)
	Subsequent unit	Ultrapure polishing resin cartridge× 4+(0.45+0.1)μm terminal filer×1 UV model:+Double wavelength(185&254)nm UV lamp cartridge×1 UF model:+5000 Doulton UF cartridge×1 UVF model:+Double wavelength(185&254)nm UV lamp cartridge×1+5000 Doulton UF cartridge×1
Ultrapure water quality	Resistivity	18.2MΩ.cm@25°C
	Heavy metal ions	<0.1ppb
	TOC	<10 ppb		<5 ppb
	Endotoxin	-	<0.001EU/ml	-	<0.001EU/ml
	particle(>0.22μm)	<1/ml
	Bacteria	< 1cfu/ml
RO water quality		< TDS(ppm, mg/l) of tap water×5%
Output(25°C)		15 liters/hour* (“plus” model:30 liters/hour*)
Flow rate		2 liters/min(with pressure tank)(Less output with UF/UV cartridge)
Pure water outlet		RO water ,ultrapure water
Control system		Automatic electronic pressure sensor controlling, RO membrane auto flushing, automatic stop without water, automatic stop when water tank full, automatic cutting off water when pump stopping, guaranteeing 24 hours’ work.
Water quality monitor		TDS test pen+ on-line resistivity monitor
Electric requirements		AC110-220V,50/60Hz, 48W/plus model:72W
Dimension and weight		Length×Width×Height:41×22×42cm / 12-14 kg
Standard configuration		Main body(including:1 set cartridge)+4.0 gallon water tank + TDS pen + accessory box

After-sales service

· The products customers buy from our company enjoy repair service since the day of purchase. In on year from the purchasing day, our company is obliged to replace components free of charge due to non-human-behavior factors except:

(1). Damage caused by maloperation or use in abnormal situations.

(2). Disassembly any part of the machine or human-behavior damage.

(3). Not repaired by our serviceman.

Main Market

Asia, The Middle East, Eastern Europe and South Africa

Certificates
