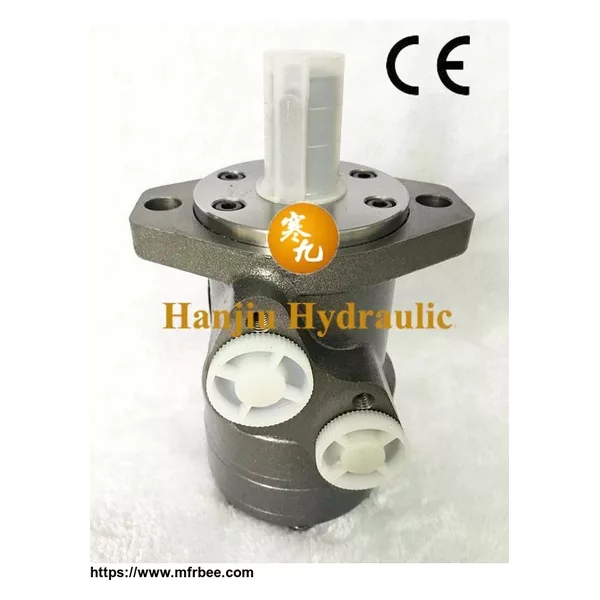

Hydraulic Orbit Motor BMP

BMP series motor are small volume, economical type, which is designed with shaft distribution flow, which adapt the Gerotor gear set design and provide compact volume, high power and low weigth.
Characteristic Features:
* Advanced manufacturing devices for the Gerotor gear set, which provide small volume, high efficiency and long life.
* Shaft seal can bear high pressure of motor of which can be used in parallel or series.
* Advanced construction design, high power and low weight.

Order Code:

Code
BMP
Displacement
36 50 80 100 125 160 200 250 315 400 500
Flange
2	2-Ø13.5 Rhomb-flange,pilot Ø82.5×8
	4-Ø13.5 Rhomb-flange,pilot Ø82.5×8
H4	4-3/8-16 Square-flange,pilot Ø44.4×2.8
H5	4-M10 Square-flange,pilot Ø44.4×2.8
Output Shaft
A	Shaft Ø25,parallel Key 8x7x32
B	Shaft Ø32,parallel Key 10x8x45
C	Shaft Ø25.4,parallel Key 6.35x6.35x31.75
E	Shaft Ø25.4,splined tooth SAE 6B
R	Short shaft Ø25.4,parallel key 6.35x6.35x31.75
F	Shaft Ø31.75,splined tooth 14-DP12/24
FD	Long shaft Ø31.75,splined tooth 14-DP12/24
G	Shaft Ø31.75,parallel Key 7.96x7.96x31.75
T	Cone-Shaft Ø28.56,parallel Key B5x5x14
T3	Cone shaft Ø31.75,parallel key 7.96x7.96x25.4
Port and Drain Port
D	G1/2 Manifold Mount 4xM8, G1/4
M	M22×1.5 Manifold Mount 4xM8, M14×1.5
S	7/8-14 O-ring manifold 4x5/16-18UNC, 7/16-20UNF
P	1/2-14 NPTF Manifold 4x5/16-18UNC,7/16-20UNF
R	PT(Rc)1/2 Manifold 4xM8, PT(Rc)1/4
Rotation Direction
Omit	Standard
R	Opposite
Paint
00	No paint
Omit	Blue
B	Black
S	Silver grey
Unusually Function
Omit	Standard
N	Big radial force
O	No case drain
F	Free Running
LS	Low Speed
