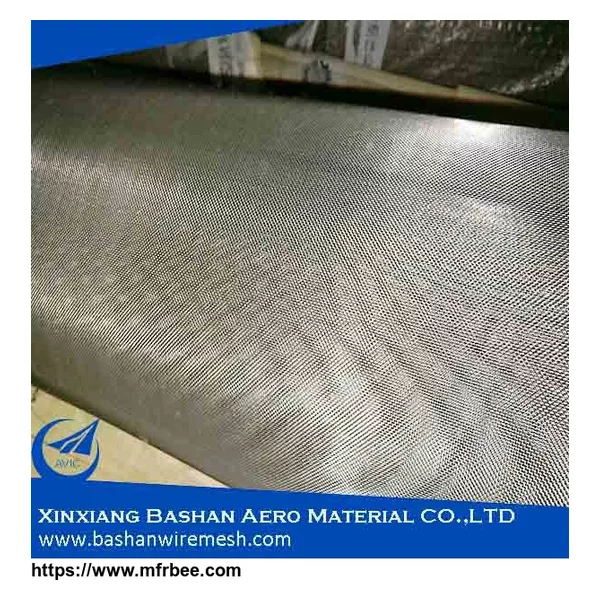

xinxiang bashan stainless steel screen mesh weave wire mesh
Product Quick Detail
- Place Of Origin
- henan,china
- Minimum Order
- 10
- Packaging
- Water proof paper packed each roll and then in wooden case.
- Delivery
- 15 Days
Specifications
Place of Origin:
Material:
Type:
Application:
Weave Style:
Wire Diameter:
Technique:
Model Number:
Brand Name:
Product name:
Mesh size:
Materials:
Wire diameter:
Width:
Length per roll:
Features:
Certificate:
MOQ:
Packaging Details:
Water proof paper packed each roll and then in wooden case.
Delivery Detail:
7-15days
stainless steel screen mesh weave wire mesh
Material: 302,304,304L,316,316L,321 and 430 etc
Wire diameter: 0.025mm-1.800mm
Weaving method: Plain weave, Plain dutch weave, Twill weave, Dutch twilled weave
1. Plain Weave: also called tabby weave, linen weav or taffeta weave, is the most basic type of weaves. In plain weave, the warp and weft are aligned so they form a simple criss-cross pattern. Each weft thread crosses the warp threads by going over one, then under the next, and so on. The next weft thread goes under the warp threads that its neighbor went over, and vice versa.
2. Twill Weave: In a twill weave, each weft or filling yarn floats across the warp yarns in a progression of interlaces to the right or left, forming a distinct diagonal line. This diagonal line is also known as a wale. A float is the portion of a yarn that crosses over two or more yarns from the opposite direction.
3. Plain Dutch Weave: similar with plain weave, just the weft and warp wire have different wire diameter and different mesh size.
4. Twill Dutch Weave: similar with twill weave, just the weft and warp wire have different wire diameter and different mesh size.
5. Reversed Dutch Weave: difference from standard Dutch weave lies in the thicker warp wires and less weft wires.
Stainless steel wire mesh is the most popular woven screen in the industrial world, as well as printing materials. Please see below a list that MAISHI can produce:
[ Materials ]: 1. AISI: AISI 304,AISI 304L,AISI 316,AISI 316L
2. T series: T 304, T316
3. SS series: SS 410, SS 430, SS 302
4. SUS : SUS 310,SUS 310L
[ Width ] : 0.914m, 1m, 1.22m, 1.3m, 1.4m, 1.5m, 1.6m, 2m, 3m, 4m, 6m.
[ Roll Length ] : 30m, 30.48m or as per your request
Our company
Xinxiang Bashan Aero Material Co., Ltd., affiliated to China Aviation Industry Corporation (AVIC), is the only professional military manufacturer of Metal wire, Metal wire mesh, Filter element, Special filtration component and Thread insert.
In more than 60 years experience of metal wire cold drawing, metal wire mesh weaving and deep processing products, Bashan company acquired 24 metal wire & mesh patents and took chief part of 19 standards, such as GB/T4240, GB/T5330, GB/T6003, GJB107, HB1862, etc. (GB/T, national standard; GJB national military defense standard; HB, aviation standard.)
Contact
- Country: China (Mainland)
- Business Type: trading company
- Market:europe
- Founded Year:1955
- Address:No.5 Daoqing Rd, Xinxiang, Henan, 453000, China
- Contact:Jane Yuan
