Customers can easily design CO detectors with the ready- to-use module.

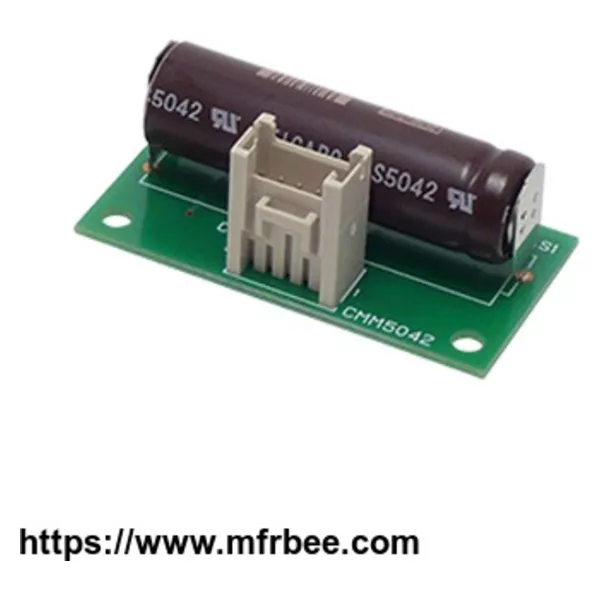

CMM5042 Carbon Monoxide (CO) Gas Sensor Module Features:
* Ease of use
* Linear analog output proportional to gas concentration
* Maintenance free
* Battery operable
CMM5042 Carbon Monoxide (CO) Gas Sensor Module Applications:
* Residential and commercial CO detectors
* Ventilation control
* CO monitor for gas boilers, kerosene heaters, etc.
CMM5042 Carbon Monoxide (CO) Gas Sensor Module Specifications (tentative)
Item | Specification | |
Model number | CMM5042 | |
Gas sensor | TGS5042 (electrochemical) | |
Detection range | 0 ~ 800ppm CO | |
Current consumption | At no-load: ≤200µA | |
Input voltage | Vin | 2.5~5.3V DC |
Output signal | Vout | 0~2V DC |
Normal operation | Vout = 2-[CO conc(ppm)/400] | |
Vout in air | 2.0±0.1V | |
Vout in 400ppm CO | 1.0±0.2V | |
Warm up time | ≤30 sec. | |
Operating temperature |
0˚C ~ +50˚C (continuous)
-5˚C ~ +55˚C (intermittent) |
|
Operating humidity | 5 ~ 95%RH | |
Response time (T90) | within 60 seconds | |
Storage conditions | -5˚C ~ +55˚C/5 ~ 95%RH | |
Dimensions | 56 x 29 x 22mm | |
Weight | approx. 19g |
