FSM-T-04A Pre-Calibrated Combustible Gas Sensor Module

Minimum Order
1
Packaging
N/A
Delivery
15 Days
FSM-T-04A Combustible Gas Sensor Module Features:
* Linear analog output proportional to gas concentration
* Maintenance free
* Compact size
* Meets RoHS requirements

FSM-T-04A Combustible Gas Sensor Module Applications:
* Gas leak detection in fuel cell systems
* Hydrogen & combustible gas leak detectors

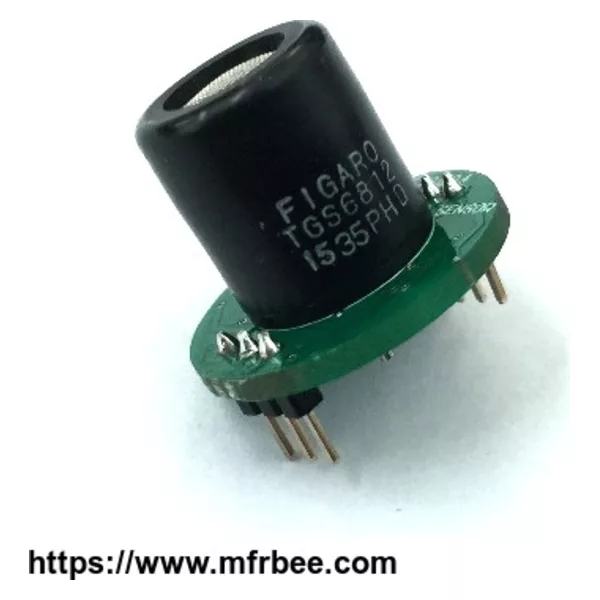

The FSM-T-04A combustible gas sensor module is a new unit which utilizes TGS6812, catalytic pellistor type gas sensor which features durability and stability. This module provides analog output voltage proportional to hydrogen gas concentration.(There is a memory in module, where factory calibration data has been store). FSM-T-04A has conformal coatings for moisture proofing and electrical insulation purposes, and is also capable of detecting sensor wire breakage. The unit has a wide range of operating temperature from -10 to +70℃.

Furthermore, the unit can detect CH4, LPG, H2. It is less sensitivity to VOCs gas, it immunes poison by silicon compounds, it suits to work at rugged environment.

FSM-T-04A Combustible Gas Sensor Module Specification:
Product name Combustible gas sensor module
Model No. FSM-T-04A
Gas sensor TGS6812 (catalytic type)
Detection range 0 ~ 50,000ppm CH4

(also can detect methane, iso-butane, and propane)

Error ±3%LEL
Output voltage (Vconc) 0.5~4.5V DC(Max 5V)
Trouble Vconc=0~0.1V
Factory setting output Vconc in air 0.5~1.5V
Response time (T90) ≤30S
Operating conditions -10˚C ~+70˚C, 20~95%RH (No condensing)
Storage conditions -10˚C ~+80˚C, 20~95%RH
Input voltage (VIN) 5.0±0.2V DC , 3.0±0.1V DC
Power consumption ≤1.5W
Weight 15g or less
Dimensions φ23.6mm H:23.2mm
Standard test conditions Ambient conditions 20±2˚C, 65±5%RH
Circuit conditions 5.0±0.2V,3.0±0.1V DC
Conditioning period prior to test ≥10 minutes
