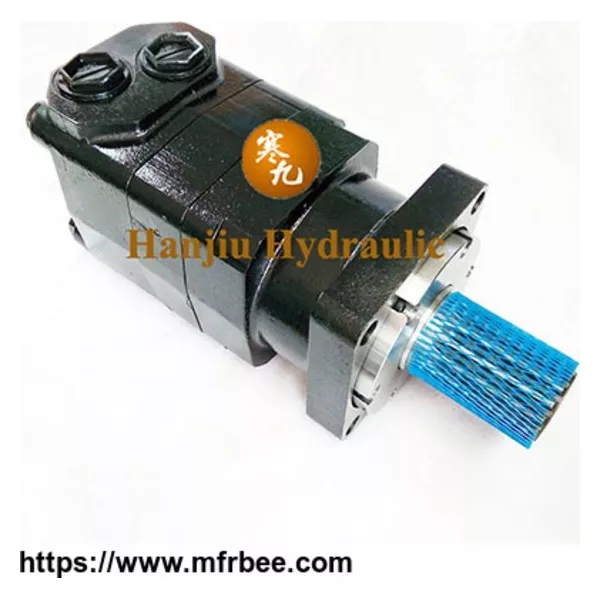

BMV series motor adapt the advanced Gerotor gear set, design with disc distribution flow and high pressure. The unit can be supplied theindividual variant in operating multifunction in accordance with requirement of applications.
Characteristic Features:
*Advanced manufacturing devices for the Gerotor gear set, which use low pressure of start-up, provide smooth and reliable operationand high efficiency.
*The output shaft adapts in tapered roller bearings that permit high axial and radial forces. Can offer capacities of high pressure and hightorque in the wide of applications.
*Advanced design in disc distrbution flow, which can automatically compensate in operating with high volume efficiency and long life,provide smooth and reliable operation.

Order Code:

Code
BMV
Displacement
315 400 500 630 800 1000
Flange
4	4-Ø18 Square-flangeØ200,pilot Ø160×11
W	4-Ø18 Wheel-flange Ø224,pilot Ø180×10
Output Shaft
A	Shaft Ø50 , parallel key 14×9×70
BD	Shaft Ø53.975, splined key 16-DP8/16
B	Shaft Ø53.975, splined key 16-DP8/16
C	Shaft Ø57.15, parallel key 12.7×12.7×57.15
T	Cone shaft Ø60, parallel key B16×10×32
T1	Cone shaft Ø60, parallel key 14.308×14.308×50.8
Port and Drain Port
D	G1 Manifold 4×M12, G1/4
M	M33×2 Manifold 4×M12, M14×1.5
S	1-5/16-12UN, 9/16-18UNFG1,
G	G1/4
M5	M33×2, M14×1.5
S1	1-5/16-12UN(18),7/16-20UNF(12)
Rotation Direction
Omit	Standard
R	Opposite
Paint
00	No paint
Omit	Blue
B	Black
S	Silver grey
Unusually Function
Omit	Standard

Note: When the table is used, please fill the code in the table and give us the complete order code you need. The code information consists of construction, displacement, mounting flange, output shaft and ports . For more details about Performance data, Dimensions & mounting data, Shaft extensions, etc., please download our catalogue at here.
