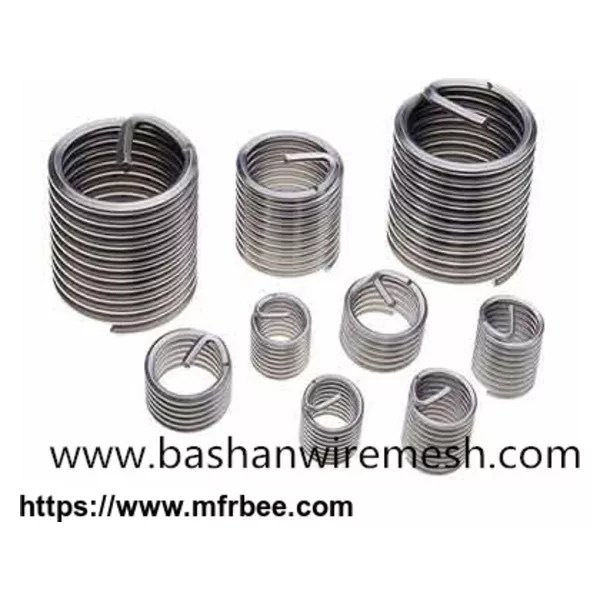

Product Description
1.Certification:ISO9001
2.Size:M2~M36,Pitch:0.4~4mm
3.Standard :DIN
4.Material: stainless steel SS304, SS316 .
5.packing : standard export packing or according to customer's request.
6.delivery time: regular products is about 3-20 days, custom products will according to special requirement.
UNC Specification and Assembly Data:
UNC Specification and Assembly Data: | |||||||
Specification | Nominal Length | w | Dz | d0 | |||
L×d | |||||||
d×p | p | ×d | L1 | min | max | ||
2-56 (0.086) | 0.453 | 1d | 2.2 | 3 | 2.7 | 2.9 | 2.4 |
1.5d | 3.3 | 5.25 | |||||
2d | 4.4 | 7.4 | |||||
2.5d | 5.5 | 9.6 | |||||
4-40 (0.112) | 0.635 | 1d | 2.9 | 2.8 | 3.6 | 4 | 3.1 |
1.5d | 4.3 | 4.8 | |||||
2d | 5.8 | 6.8 | |||||
2.5d | 7.2 | 8.8 | |||||
5-40 (0.125) | 0.635 | 1d | 3.2 | 3.3 | 4 | 4.4 | 3.4 |
1.5d | 4.8 | 5.5 | |||||
2d | 6.4 | 7.8 | |||||
2.5d | 7.9 | 10 | |||||
6-32 (0.138) | 0.794 | 1d | 3.5 | 2.8 | 4.5 | 4.9 | 3.8 |
1.5d | 5.3 | 4.8 | |||||
8-32 (0.164) | 0.794 | 1d | 4.2 | 3.5 | 5.2 | 5.6 | 4.4 |
1.5d | 6.3 | 5.9 | |||||
2d | 8.3 | 8.3 | |||||
2.5d | 10.5 | 10.7 | |||||
10-24 (0.190) | 1.058 | 1d | 4.8 | 2.9 | 6.2 | 6.6 | 5.2 |
1.5d | 7.2 | 5 | |||||
2d | 9.6 | 7.1 | |||||
2.5d | 12.1 | 9.2 | |||||
12-24 (0.216) | 1.058 | 1d | 5.5 | 3.5 | 6.8 | 7.2 | 5.8 |
1.5d | 8.2 | 5.9 | |||||
2d | 11 | 8.3 | |||||
2.5d | 13.7 | 10.7 | |||||
1/4''-20 | 1.27 | 1d | 6.4 | 3.4 | 8.2 | 8.5 | 6.7 |
1.5d | 9.5 | 5.7 | |||||
2d | 12.7 | 8 | |||||
2.5d | 15.9 | 10.3 | |||||
5/16''-18 | 1.411 | 1d | 7.9 | 4 | 10 | 10.3 | 8.4 |
1.5d | 11.9 | 6.6 | |||||
2d | 15.9 | 9.3 | |||||
2.5d | 19.8 | 1.9 | |||||
3/8''-16 | 1.588 | 1d | 9.5 | 4.4 | 11.8 | 12.2 | 10 |
1.5d | 14.3 | 7.2 | |||||
2d | 19.1 | 10.1 | |||||
2.5d | 23.8 | 12.9 | |||||
7/16''-14 | 1.814 | 1d | 11.1 | 4.5 | 13.4 | 14 | 11.6 |
1.5d | 16.7 | 7.4 | |||||
2d | 22.2 | 10.3 | |||||
2.5d | 27.8 | 13.1 | |||||
1/2''-13 | 1.954 | 1d | 12.7 | 4.8 | 15.2 | 15.8 | 13.2 |
1.5d | 19.1 | 7.9 | |||||
2d | 25.4 | 10.9 | |||||
2.5d | 31.8 | 13.9 | |||||
9/16''-12 | 2.117 | 1d | 14.3 | 5.1 | 17 | 17.6 | 14.9 |
1.5d | 21.5 | 8.3 | |||||
2d | 28.6 | 11.5 | |||||
2.5d | 35.7 | 14.7 | |||||
5/8''-11 | 2.309 | 1d | 15.9 | 5.3 | 18.9 | 19.5 | 16.6 |
1.5d | 23.8 | 8.3 | |||||
2d | 31.8 | 11.8 | |||||
2.5d | 39.7 | 15 | |||||
3/4''-10 | 2.54 | 1d | 19.1 | 5.9 | 22.4 | 23 | 19.7 |
1.5d | 28.6 | 9.4 | |||||
2d | 38.1 | 13 | |||||
2.5d | 47.6 | 16.6 | |||||
7/8''-9 | 2.822 | 1d | 22.2 | 6.3 | 26 | 26.7 | 23 |
1.5d | 33.3 | 10 | |||||
2d | 44.5 | 13.7 | |||||
2.5d | 55.6 | 17.4 | |||||
1''-8 | 3.175 | 1d | 25.4 | 6.4 | 29.6 | 30.4 | 26.2 |
1.5d | 38.1 | 10.2 | |||||
2d | 50.8 | 14 | |||||
2.5d | 63.5 | 17.8 | |||||
1 1/8''-7 | 3.629 | 1d | 28.6 | 6.3 | 33.4 | 34.4 | 29.5 |
1.5d | 42.9 | 10 | |||||
2d | 57.2 | 13.8 | |||||
1 1/4''-7 | 3.629 | 1d | 31.8 | 7.1 | 36.7 | 37.7 | 33 |
1.5d | 47.6 | 11.3 | |||||
2d | 63.5 | 15.4 | |||||
1 3/8''-6 | 4.234 | 1d | 34.9 | 6.6 | 40.6 | 41.7 | 36 |
1.5d | 52.4 | 10.6 | |||||
2d | 69.9 | 14.4 | |||||
1 1/2''-6 | 4.234 | 1d | 38.1 | 7.4 | 43.9 | 45 | 39.5 |
1.5d | 57.2 | 11.6 | |||||
2d | 76.2 | 15.9 |
Remark: Please feel free to contact me if you have any questions. And we can receive customize.
Bashan factory affiliated to China Aviation Industry Corporation (AVIC), is the only professional military manufacturer of stainless steel wire, metal wire mesh, filter element, special filtration component and wire thread insert.
In more than 62 years experience of metal wire cold drawing, metal wire mesh weaving and deep processing products, Bashan company acquired 24 metal wire & mesh patents and took chief part of 19 standards, such as GB/T4240, GB/T5330, GB/T6003, GJB107, HB1862, etc. (GB/T, national standard; GJB national military defense standard; HB, aviation standard.)
We have successfully set up business relationships with about 20 companies in North America, West Europe and other countries and regions. And we are aerospace and defence industries. Now our annual turnover is in excess of USD 45 million. Please feel free to visit our website or contact us for more information and pictures. We are looking forward to establishing a long-lasting business relationship with you in the near future.
With plant area covering about 50,000 square meters, we employ more than 200 managerial and technical personnels and 800 skilled workers.
