Preface
Xinxiang Bashan Aero Material Co., Ltd. (Bashan), affiliated to China Aviation Industry Corporation, is a specialized manufacturer that produces steel thread inserts for military and civil use more than 50 years. We attained ISO9001 certificate in 1998. Good quality, best price and large capability of production.

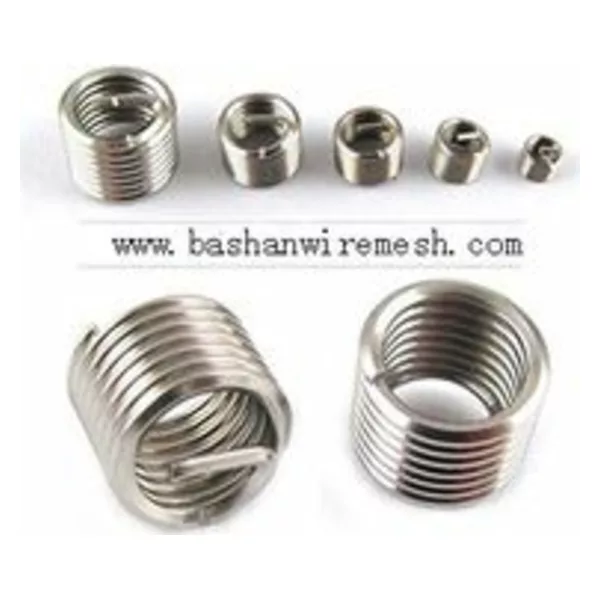

Thread insert is a new type of fastener. It is precision formed coils of stainless steel wire having a diamond shaped crossed-section.
There are two forms: free-run type and screw-locking type. Screw-locking type offers a screw-lock effect by polygon elastic safety coils.
Thread insert is used for manufacturing high strength, wear-resistant, high duty and vibration-proof in metallic and non-metallic materials such as Al, Mg alloy, plastic to form M and MJ thread.
Now the insert technology has been widely used in many industries such as aerospace, aviation, electricity, instrument, and chemical fiber and so on.
Having more than 50 years of experiences in this field, and with background of military technology, we can supply both Inch system and Metric system insert to meet customers' need, according to DIN standard. For detailed offer, please give me your specifications and quantity, package requirement, etc.
Contact
Product Description 1) size 3/4\" to 8\" 2) new PVC material 3) spiral zinc-plated steel wire 4) full new material 5) smooth bore APPLICATIONS: 1) The hose is widely used for drawing and conveying water, oil and powder. 2) Mainly use in factories, agriculture, engineering, ...
1) Material: Hign impact, self extinguishing PVC 2) UL94V0 Flammability Grade 3) Working temperature: + 85 ℃ 4) Color : White, Grey, Beige, Brown 5) Available in five sizes, width from 30 to 120mm 6) Factory applied adhesive backing 7) Good for floor wiring to facilitate ...
Product Description High quality M3X0.5 Stainless Steel Wire Thread insert for military use Material stainless steel 304 Color original/red/black/ Length 1D=3mm, 1.5D=4.5mm, 2D=6mm, 2.5D=7.5,3D=9mn Standard MERTRIC/UNC/UNF/ Circle 4.2K, 6.8K, 9.4K,12K,14.6K Coating plates the ...
Product Description: Screw Locking inserts Heli-coil-type Screw Thread Coils with M4 x 0.7 Outside dia 5.05 ~ 5.25mm Drill diameter 4.2mm Install tool size M4 x 0.7 Break tool size M4 x 0.7 Unload tool size M4 x 0.7 Weight (1000piece/Kg) 0.12,0.2,0.27,0.38,0.45 Length(mm) 4.0, ...
Helicoil Free-Running Inserts Helicoil Free-Running Insertsis a high-precision surface of the cold-rolled diamond-shaped stainless steel wire precisely formed by the spiral coil, for high-precision internal and external thread concentric. The wire screw is assembled to form a ...
Product Description Brass EDM wire Φ0.3mm~0.1mm Raw Material: Cuzn35, Cuzn37?, H62 Wire Diameter: 0.30mm, 0.25mm, 0.20mm, 0.15mm, 0.10mm Wire Condition: Hard, Semi-hard, Soft Tensile Strength: 1000, 900, 500, 450 N/㎜² Conductivity: Above 20% IACS Spool Type: P3, P5, P10, ...
Features of China Brand High Quality EDM Brass Wire for Sale. 1.High dimensional accuracy. 2.Diameter tolerance is kept to +0 ~ -0.002mm and circularity within 0.001mm. 3.Outstanding straightness. 4.We test each spool for curling and torsion and pride ourselves on the stable ...
China manufacturing high-quality taper pin with threaded end ISO 8737 Fastener : taper pin with thread end DIN7977 Fastener : taper pin with thread endDIN7977/ISO8737: 1)Diameter:5.0-40 2)Length:8-20 3)Materials:Gcr15 4)Heat Treatmet:HRC58-62 ...
