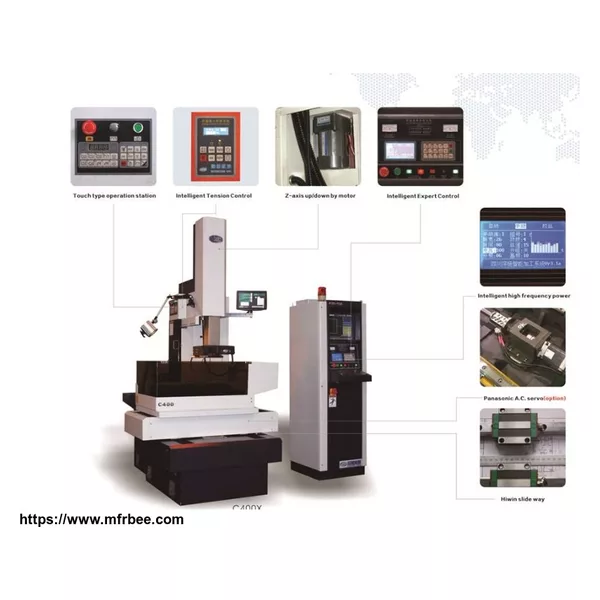

QC350 CNC Molybdenum Wire Cut EDM
Product Quick Detail
- FOB Price
- USD $13,000.00 / Piece
- Place Of Origin
- China (Mainland)
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 20 Days
Specifications
Automations
1. Wire tension automatic control, No need to tighten the wire manually. Constant tension and stable accuracy.
2. the Z axis can move by automatic. No need to remove the wire.
3. Intelligent setting the cut parameter, operation is handy.
4. Wire diameter automation control. Reduction the accuracy error which caused by the change of the wire diameter.
| Machine Type | QC350 | QC400 | QC500 |
| Table size mm | 840×620 | 980×620 | 1100×700 |
| Table travel mm | 350×400 | 400×500 | 500×630 |
| UV axis travel mm | ±25 | ±25 | ±25 |
| Workpiece max.Thickness mm |
250 (can upgrade 400) |
250 (can upgrade 400) |
250 (can upgrade 400) |
| Workpiece max.Weight kg | 450 | 600 | 1400 |
| Machine weigh KG | 1400 | 1600 | 2400 |
| Max.Taper cutting | ±6 (need installwire guide) | ||
| Pulse equivalent | 0.001 mm | ||
| Wire speed | 1-15 m/s (speed adjustment by frequency conversion) | ||
| Overall processing speed | 60 mm2/min | ||
| the fast processing speed | 120 mm2/min | ||
| the best Roughness | Ra 1.0 | ||
| Wire diameter | 0.1-0.20 mm | ||
| Composite machining accuracy | 0.01 mm | ||
| Drive tpye | Stepper motor (Can grade AC servo motor) | ||
| Guide | Japanese THK linear guide | ||
| X Y axis screw | Ball screw made in China | ||
| Bearing | Japanese NSK bearing | ||
| Measurement system | Electronic ruler | ||
| Volume of the tank L | 100 | ||
| Tank size | 1080×620×630 mm | ||
| Wire cylinder stroke | 250 mm |
the important precision index. (with out wire guider!!)
1. Roughness: Ra≤1.0um/30000mm2.
2. Accuracy of the machining: ≤±0.005mm.
3. Conformance deviation: ≤0.005mm/30pcs.
4. Longitudinal dimension deviation: ≤0.005/100 mm.
- Country: China (Mainland)
- Business Type: Design, production and sales cnc wire cut edm machine
- Market:South America, Southeast Asia, Mid East, Eastern Asia
- Founded Year:1999
- Address:No.106 Liangshuijing Road,, Daan District Zigong, Sichuan China
- Contact:leon liu
