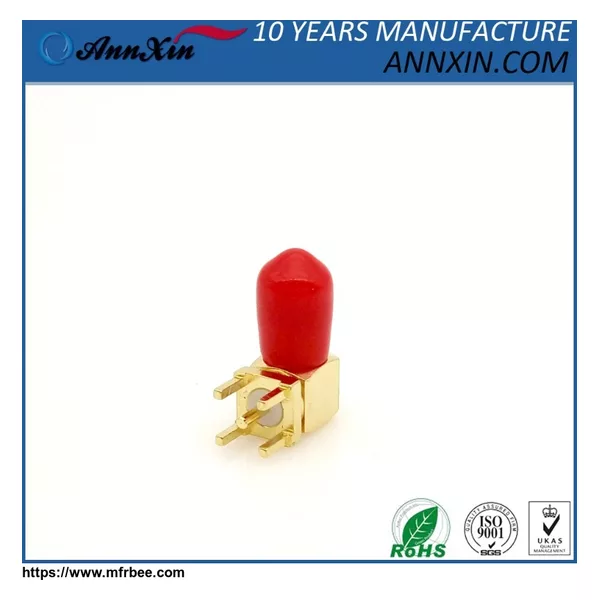

SMA female right angle for PCB board.

1000: 10000

China: shenzhen

Packaging: N/A

Delivery: 7 Days

Our Advantages:

Accurate and fast delivery day(usually we have stock)

High quality with competitive price

Excellent performance VSWR 1.3MAX

Pure brass maerial,PEFE insulation and environmental electroplating

Description:

SMA connectors 50 Ohm are semi-precision units that provide excellent electrical performance from DC to 18 GHz and outstanding mechanical durability.

SMA connectors feature stainless steel or brass construction and ? – 36 threaded coupling, which offers high performance in a compact design.

SMA interconnects offer a precise and simple means of phase adjustment for microwave devices.

Built in accordance with MIL-C-39012 and CECC 22110/111, SMA connectors can be mated with all connectors that meet these specification mating diameters regardless of manufacturer.

SMA series are a very commonly coax connect or with 1/4”-36 threaded coupling and was developed in the 1960’s.

SMA connector is available for mounting to printed circuit boards using b through-hole soldered and through-hole press-fit techniques, and surface mount technique(SMD).

Solder, Crimp and Clamp modes are used to assemble SMA connector to cable.

SMA series are applied to PC/LAN, Telecom Process Controls, GPS Vehicle Tracking System, MIL-Aero, Microwave Components. Reverse Polarity SMA connector with reverse interface.

Note: These characteristics are typical and may not apply to all connectors.

SMA FEATURES AND BENEFITS

Light weight, compact and vibration proof design

Low cost commercial grade (Brass SMA) available in nickel or gold plating

Terminates to all standard flexible coaxial cables, low-loss (LMR) type cables and industry standard semi-rigid and conformable cables

Applications:

Antenna

Aero

Base Stations

Cable Assembly

GPS

Instrumentation

Microwave Components

Mobile Phone system

PC/LAN

Telecommunications

SMA CONNECTOR SPECIFICATIONS

见图片中的表格规格

连接如下

http://antenna-connector.com/products/sma-jack-female-right-angle-pcb-coaxial-connector-50-ohms/

Country: China (Mainland)
Business Type: Manufacturer
Market:Europe,Americas,Africa,Asia,Emerging Markets,European Union,Middle East,Oceania
Founded Year:2010
Address:No.25 of Jinhai Mid Road, Shatou Divisions, Changan town, Donguan City,Guangdong Province,China
Contact:Emily Tan
