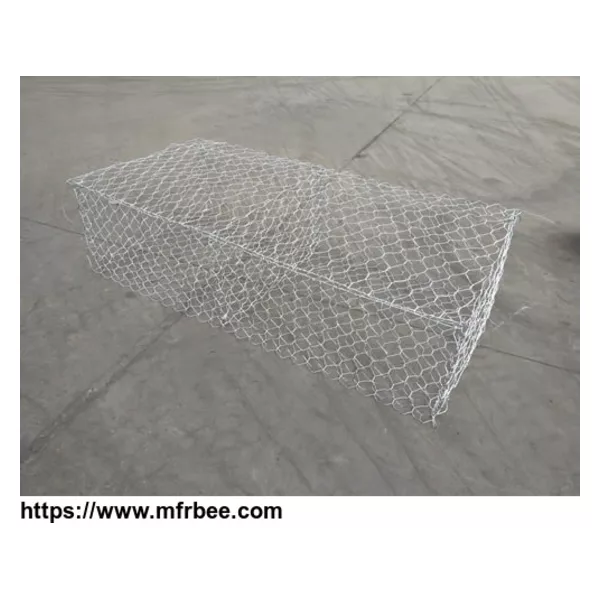

Gabion mesh is also called Gabion box, it’s parts are mesh that woven from galvanized wire or galvanized & PVC coating wire that twisted by heavy machine into honeycomb style,
then through cutting, mesh reinforcement, connected, assemble into square box.
In river channel network application advantages:
(1)environmental protection, natural material, environment, plants can grow in them, and meet the requirements;
(2)integrity, the structure is not easy to break;
(3)flexible, able to adapt to the foundation deformation without damage;
(4)the durability, gabion mesh using zinc coating and PVC coating wire, long service life.
(5)water permeability, internal structure can be waterproof, does not need special drainage facilities;
(6)low cost, less material, construction is convenient.
Productions name | Cage length M(L) | Cage width M(W) | Cage height M(H) |
Gabion wire mesh | 1.0-4.0 | 0.5-2.0 | 0.5-1.5 |
Mesh(MM) | 60*80 | 80*100 | 100*120 | 120*150 |
Galvanized iron wire dia. | 1.5-2.8 | 1.5-3.5 | 1.5-3.5 | 1.5-4.0 |
PVC coated galvanized iron wire dia. | 2.5-3.5 | 2.5-3.8 | 2.5-4.0 | 2.5-4.0 |
Mesh(MM) | 140*160 | 160*180 | 200*240 | 220*250 |
Galvanized iron wire dia. | 2.0-4.0 | 2.0-4.0 | 2.0-4.0 | 2.0-4.0 |
PVC coated galvanized iron wire dia. | 3.0-4.0 | 3.0-4.0 | 3.0-4.0 | 3.0-4.0 |
