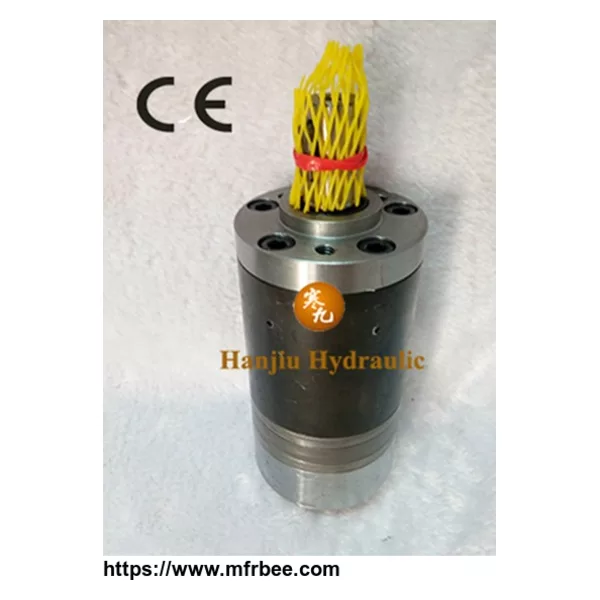

Hydraulic Orbit Motors (BMM/OMM series)
Product Quick Detail
- FOB Price
- USD $65.00 / Piece
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- wooden case or others
- Delivery
- 15 Days
Specifications
BMM Hydraulic orbit motors
BMM series motor are small volume,economical type,which is designed with shaft distribution flow, which adapt
the Gerotor gear set design and provide compact volume,high power and low weigth.
Characteristic features:
* Advanced manufacturing devices for the Gerotor gear set, which provide small volume, high efficiency and long life.
* Shaft seal can bear high pressure of motor of which can be used in parallel or in series.
* Advanced construction design, high power and low weight.
Main specification
| type | BMM8 | BMM12 | BMM20 | BMM32 | BMM40 | BMM50 | |
| displacement | 8.2 | 12.9 | 19.9 | 31.6 | 39.8 | 50.3 | |
| Max speed(rpm) | rated | 1537 | 1256 | 814 | 513 | 452 | 358 |
| Cont. | 1950 | 1550 | 1000 | 630 | 500 | 400 | |
| int. | 2450 | 1940 | 1250 | 800 | 630 | 500 | |
|
Max Torque (N*M) |
rated | 8 | 13 | 19 | 31 | 37 | 33 |
| Cont. | 11 | 16 | 25 | 40 | 45 | 46 | |
| int. | 15 | 23 | 35 | 57 | 70 | 88 | |
| peak | 21 | 33 | 51 | 64 | 82 | 100 | |
|
Max speed (kw) |
rated | 1.3 | 1.7 | 1.7 | 1.7 | 1.7 | 1.2 |
| Cont. | 1.8 | 2.4 | 2.4 | 2.4 | 2.2 | 1.8 | |
| int. | 2.6 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | |
|
Max pressure drop(MPa) |
rated | 9 | 9 | 9 | 9 | 8.5 | 6 |
| Cont. | 10 | 10 | 10 | 10 | 9 | 7 | |
| int. | 14 | 14 | 14 | 14 | 14 | 14 | |
| peak | 20 | 20 | 20 | 16 | 16 | 16 | |
| Max flow(L/min) | rated | 14 | 18 | 18 | 18 | 20 | 20 |
| Cont. | 18 | 20 | 20 | 20 | 20 | 20 | |
| int. | 20 | 25 | 25 | 25 | 25 | 25 | |
| Weight(kg) | 1.9 | 2 | 2.1 | 2.2 | 2.3 | 2.4 |
| Type |
|
Max.inlet pressure |
| BMM8-50 | Cont. | 17.5 |
| (Mpa) | Int. | 22.5 |
* Continuous pressure:Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
| Basic Info. | |
| Attribute | Attribute value |
| Model NO | BMM |
| Power | Hydraulic |
| Export Markets | Global |
| Structure | Hydraulic motor,orbital hydraulic motor |
| Material | Cast iron |
| OEM |
Accept |
Substitute Reference substance
| MOTOR CROSS REFERENCE TABLE | ||||||||
|
HANJIU HYDRAULIC |
M+S HYDRAULIC |
EATON CHAR LYNN |
DANFOSS |
ROSS TRW |
WHITE CROSS |
PARKER |
SAM BREVINI |
BOSCH RECROTH |
| BMM | MM MLHK | J SERIES | OMM |
|
|
|
BGM | MGX |
| BMP/BM1 | MP HP | H SERIES | OMP DH | MF MG | WP RS | TC TE TB | BG | MGP GXP |
| BMR/BM2 | MR HR MLHRW,RW | S,T SERIES W SERIES | OMR DS OMEW | MB | WR RE | TF | BR | MGR GMR |
| BMH/BM4 | MH MLHH HW HWF |
|
OMH | ME | RE | TG |
|
|
| BMS/BM5 | MS MSY MLHS | 2000 SERIES | OMS | ME | RE | TG | HPR | MGS GMS |
| BMT/BM6 | MT MLHT MTM | 6000 SERIES | OMT TMT | MJ |
|
|
HT | MGT,GMT |
| BMV | MV MLHV | 10000 SERIES | OMV |
|
|
|
|
MGV GMV |
Hydraulic orbit motor applications:
Brush cutters
Mower
Haveresting equipment
Forestry equipment
Turf equipment
