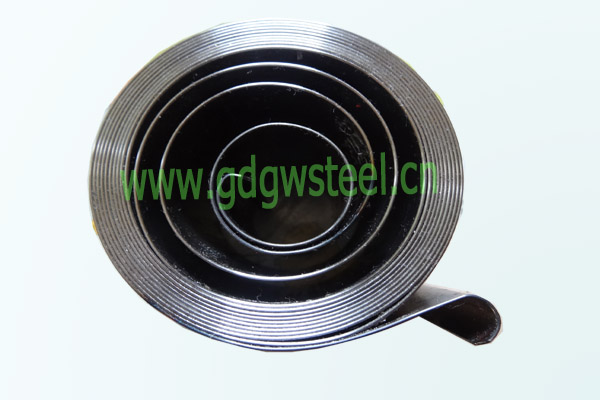

GuangWeiYouLiang's reeling shutter spring steel strip, is prestigious on quality, exports to customer overseas in S/N America, East Europe,Africa, Middle East regions for flat spring in reeling shutter door industry, in which customer much more care about Relling shutter door spring steel strip's Elasticity and durable, Our material is competent in this use for over 15 years, Reliable Elasticity and over 30,000 times test(move up and down, hooking a appropriate weight in the bottom), In additional, we also tested the Number of flat spring for a indicated door in workable as below:
Size: 30-80mm on W, 1.20-1.75mm on T,
Application:
Shutter Weight | Weight Plus Friction | Flat Spring Numbers +size |
100KG | 120KG | 4 + 1.2*60 |
160KG | 192KG | 4 + 1.2*60 2 + 1.2*45mm |
200KG | 240KG | 6 + 1.4*60 |
Shutter spring steel strip
Commonly size posted below for check:
Width Thickness Width Thickness Width Thickness
80mm 1.4mm 55mm 1.2mm 45mm 1.2mm
60mm 1.4mm 55mm 1.0mm 45mm 1.0mm
60mm 1.3mm 50mm 1.4mm 40mm 1.4mm
60mm 1.2mm 50mm 1.3mm 40mm 1.2mm
60mm 1.1mm 50mm 1.2mm 40mm 1.0mm
60mm 1.0mm 50mm 1.1mm 30mm 1.0mm
55mm 1.4mm 45mm 1.4mm
55mm 1.3mm 45mm 1.3mm
CONTACT:
M: +86 139 8323 3991
E: rockyyang AT gdgwsteel dot com
www. gdgwsteel .cn
SAE1070 spring steel strip Thickness 0.08-4.0mm,Width10-500mm 43-48HRC Edge slit edge; both rounded; one side round, one side slit; square etc Mobile /whatsapp +86 13853842286 ...
SAE1045 Spring steel strip Henson Metal ,established in 2016, specializes in supplying metallic products and customized processing services to customers all over the world. With the competency to integrate domestic and foreign resources, Henson can supply global customers with ...
Spring steel strip Steel grade 65Mn,1065,SAE1055,1045,CK50,CK55, CK60,CK67, CK70,CK75, C75Cr1,50CrV4, 51CrV4, 60Si2Mn, etc Thickness 0.08-4.0mm Width 3-400mm Hardness <200HV, 200-300HV, 300-550HV Edge slit edge; both rounded; one side round, one side slit; square etc Surface ...
JARCH Spring Loaded Stainless Steel Water Reels Industrial Automatic Retractable Cable Reel for Gantry Crane Product Description JARCH\'s stainless steel hose reels are ideal for food processing, pre-rinse, wash down, chemical transfer and industrial-solvent handling. Also ...
JARCH 304/316 Stainless Steel Spring Retractable Hose Reel water air extension cable reels with 5 million life time rotary joint Product Description JARCH\'s new Series LC stainless steel hose reels are developed for light-duty, spring-driven hose reel applications in corrosive ...

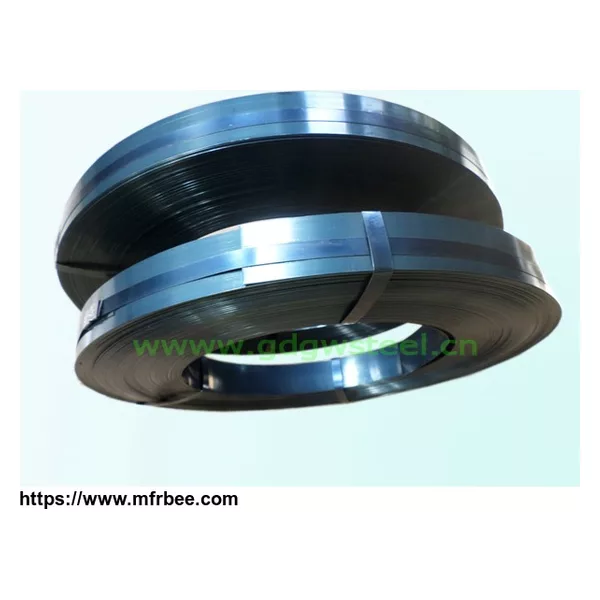

Product Overview Blue spring steel strip with high tensile GuangzhouShi GuangWeiYouliang\'s blue spring steel strip with high tensile has good performance for making varieties springs, stampings, high tensile metal parts, washers, and other special uses.our Cold-rolled Hardened ...
