FS6122B Medical Respiratory Sensor

Medical Respiratory Sensor
Model FS6122B

FS6122 series mass flow sensors are specially designed for personal ventilators for CPAP (continuous positive airway pressure). The sensor integrates MEMS mass flow sensor with a MEMS pressure the necessary information for the poper performance of the state-of-art CPAP ventilators. The miniature package not only provide space saving for the ventilator but also provides high accuracy and fast response for both mass flowrate measurement and gauge pressure data while with a very low pressure drop and small dead space.

Features
- Measures mass flow rate and gauge pressure
- Fast response time
- Highly sensitive in small flow rate
- Low power consumption
- Specially designed for medical equipment

Mechanical Dimensions

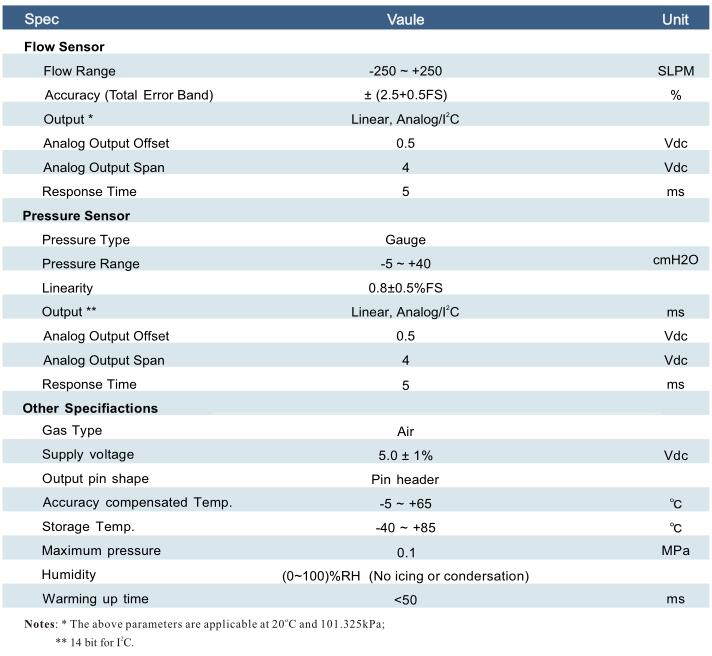

Specfications
